Highlights
1.Support MPLS features (including L2/L3 VPN),helping enterprises build a unified and integrated network platform.
2.Support MLAG and cross-device link aggregation technology to achieve device-level redundancy and flexible networking with strong reliability.
3.Support VxLAN and BGP protocols to build EVPN applications in data center scenarios.
4.Support MACsec or AES-CMAC encryption functions for switch-to-switch connections.
5.Support Precision Timing protocol.
6.Rich L2/L3 features,such as IPv6,OSPF,BGP,PIM,etc.

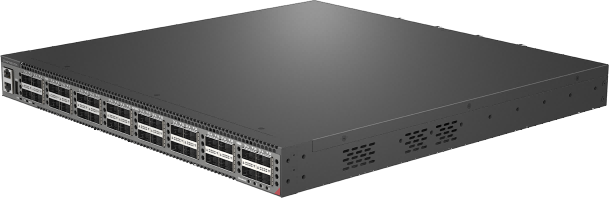

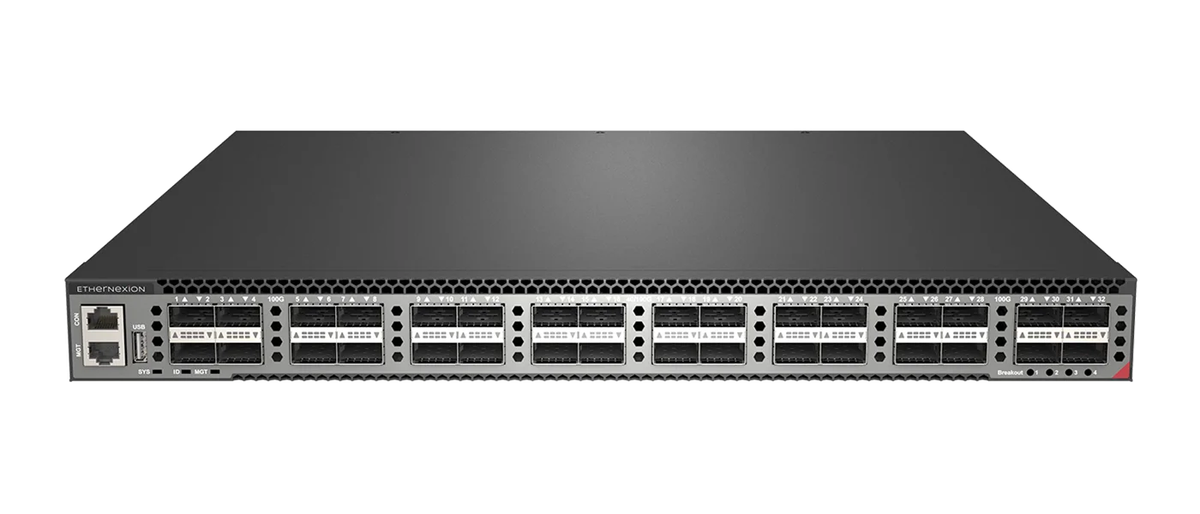

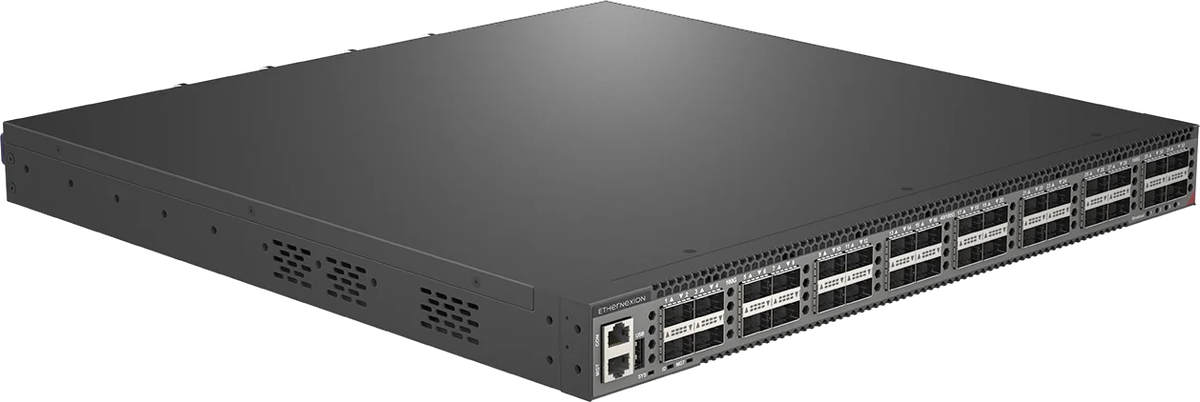

S8332C, 32x100GQSFP28, L3 Data Center Fiber Switch
Request a quote
Select your country and a local distributor. We will forward your product inquiry on your behalf.
2GB
- PoE Function
- Non-PoE
- eMMC
- 8GB

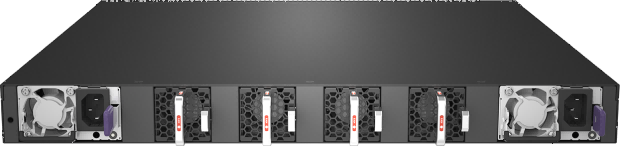

- Power Supplies
- 2 (1+1 Redundancy) Hot-swappable,AC(550W|550W)
- Switch capacity
- 6.4 Tbps
- Fans
- 4*Plugable Fans Modules(Front-to-Back Airflow)
- Layer 2/Layer 3 Throughput
- 9.53 BPPS
- Dimensions(W*H*D)
- 442*44*440(mm)
- Jumbo Frame
- 9600
- Form Factor
- 1RU
- MTBF
- ≥90000h
- Weight(kg)(Net|Gross):
- TBD
- MAC Address
- 122880
- Power Consumption
- 180.4W
- IPv4/IPv6 Routing Entry
- 61K/4K
- Operating Temperature
- 0ºC to 45ºC
- Number of VLANs
- 4094
Support priority Flow control (PFC)
Support explicit congestion notification (ECN)Support PFC watchdogSupport dynamic load balancing (DLB)Support MLAGSupport LLDP (802.1AB link layer discovery protocol)Support VLAN registration (GVRP/MVRP)Support WRED,ECN,Easy ECNSupport hardware line-speed forwarding of MPLSSupport MPLS OAM link detectionLayer 3 Routing Features- Supports OSPFv2,OSPFv3
- Supports BGP4/BGP4+
- Supports Equal-Cost Multi-Path Routing (ECMP)
- Supports PBR (Policy-Based Routing)
- Supports Virtual Router Redundancy Protocol (VRRP)
- Supports DHCP Monitoring/Relaying
- Supports IGMP v1/v2/v3
- Supports PIM SM/SSM
- Supports Bidirectional Forwarding Detection (BFD)
- Supports MPLS L3VPN Three-Layer Private Network
