5.Rich L2/L3 features like IPv6,OSPF,BGP,PIM,etc.

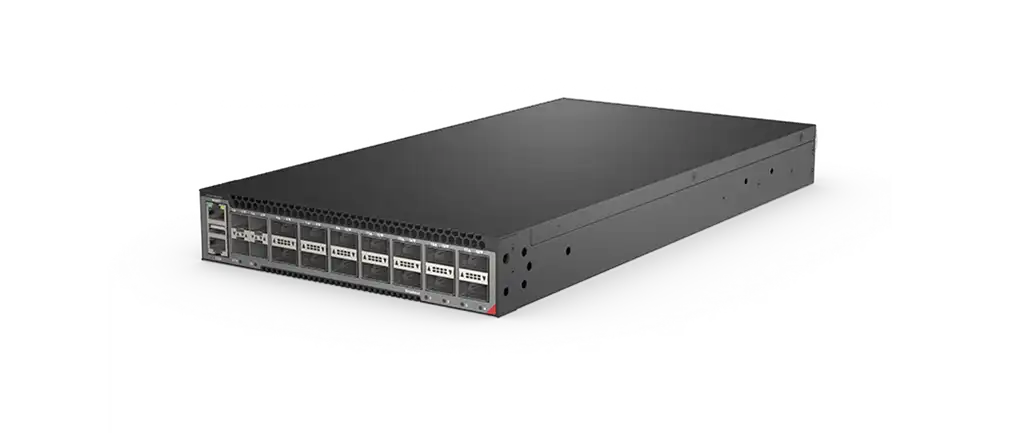

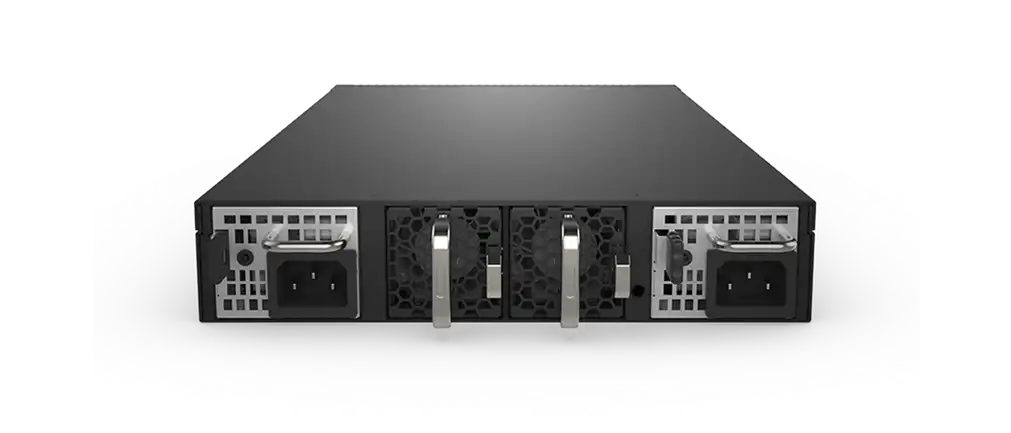

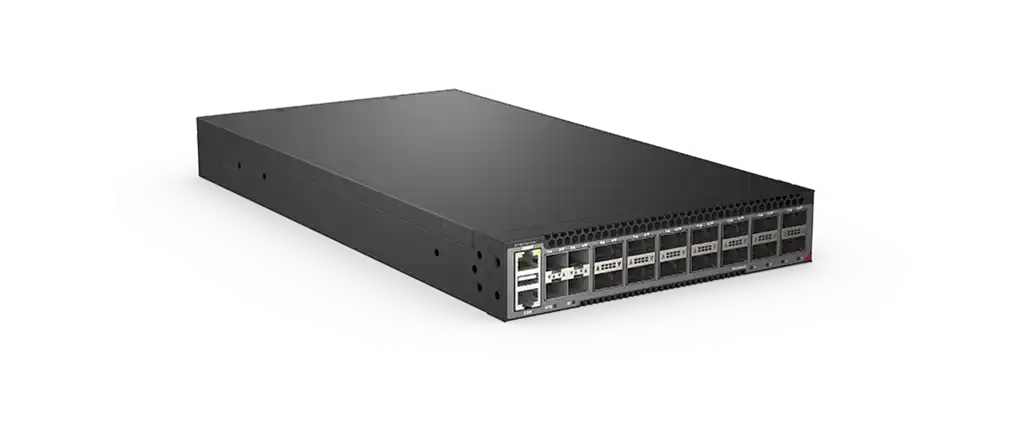

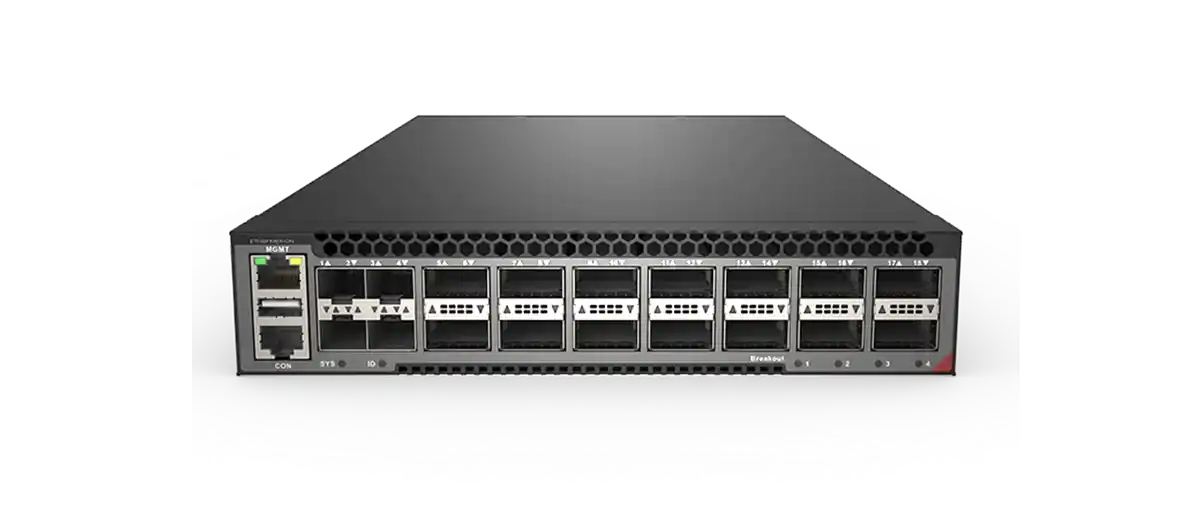

S7314CH-4N-EI, Halfsize Switch with14x100GQSFP28,4*x25G/10GSFP28, L3 Management Fiber Switch
2GB
- PoE Function
- Non-PoE
- eMMC
- 8GB
- Power Supplies
- 2 (1+1 Redundancy) Hot-swappable,AC(300W|300W)
- Switch capacity
- 3 Tbps
- Fans
- 2*Plugable Fans Modules(Front-to-Back Airflow)
- Layer 2/Layer 3 Throughput
- 4.5 BPPS
- Dimensions(W*H*D)
- 215*44*408(mm)
- Jumbo Frame
- 9600
- Form Factor
- 1RU
- MTBF
- ≥90000h
- Weight(kg)(Net|Gross):
- TBD
- MAC Address
- 122880
- Power Consumption
- 133W
- IPv4/IPv6 Routing Entry
- 61K/4K
- Operating Temperature
- 0ºC to 45ºC
- Number of VLANs
- 4094
Support priority Flow control (PFC)
Support explicit congestion notification (ECN)Support PFC watchdogSupport dynamic load balancing (DLB)Support MLAGSupport LLDP (802.1AB link layer discovery protocol)Support VLAN registration (GVRP/MVRP)Support WRED,ECN,Easy ECNSupport hardware line-speed forwarding of MPLSSupport MPLS OAM link detectionLayer 3 Routing Features- Supports OSPFv2,OSPFv3
- Supports BGP4/BGP4+
- Supports Equal-Cost Multi-Path Routing (ECMP)
- Supports PBR (Policy-Based Routing)
- Supports Virtual Router Redundancy Protocol (VRRP)
- Supports DHCP Monitoring/Relaying
- Supports IGMP v1/v2/v3
- Supports PIM SM/SSM
- Supports Bidirectional Forwarding Detection (BFD)
- Supports MPLS L3VPN Three-Layer Private Network
