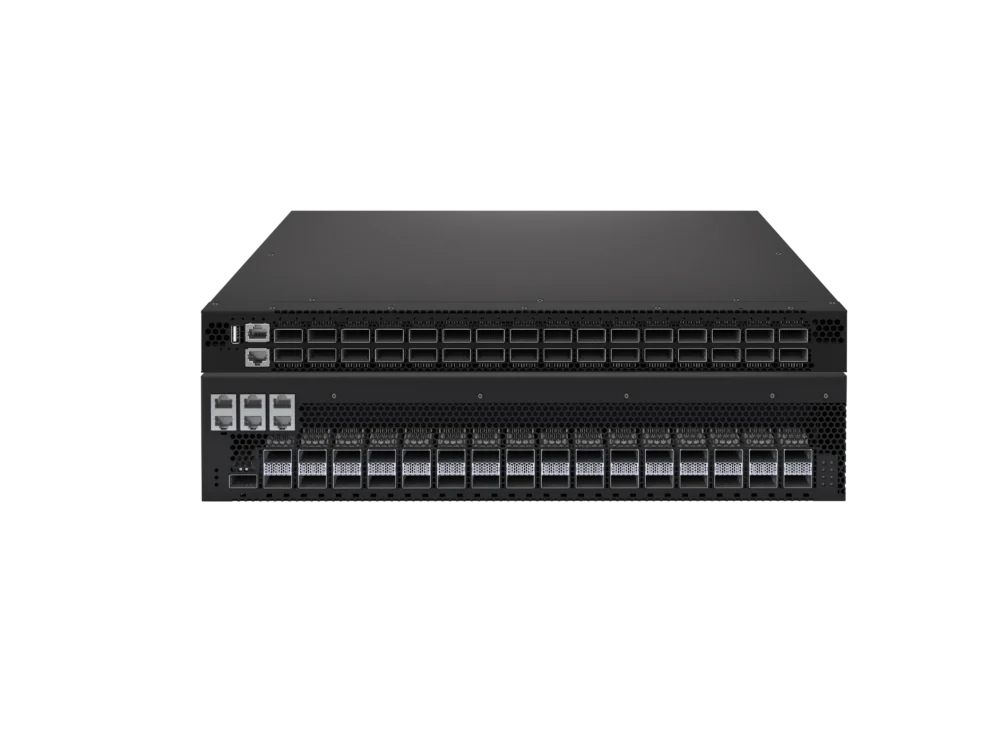

Description
| Items | AC | DC | AFO | AFI | Power Input | FAN |
|---|---|---|---|---|---|---|
| S9432OF | 〇 | 〇 | 〇 | 〇 | 2 | 4 |
| S9332DQ | 〇 | 〇 | 〇 | 〇 | 2 | 6 |
| S9364DQ | 〇 | 〇 | 〇 | 〇 | 2 | 6 |
| S9264BQ | 〇 | 〇 | 〇 | 〇 | 2 | 4 |
| S9224BQ-6DD | 〇 | 〇 | 〇 | 〇 | * | * |
| S9164C | 〇 | 〇 | 〇 | 〇 | 2 | 4 |
| Models | Ethernet Ports | Management | PSU 1/PSU 2 | Cooling |
|---|---|---|---|---|
| S9432OF | 32 x 800G OSFP | Console: RJ45 to RS232 Ethernet: 1G Port | 2 x CRPS | 4 x Fan Modules (front-to-back airflow) |
| S9332DQ | 32 x 400G QSFP112 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | 2 x CRPS | 6 x Fan Modules (front-to-back airflow) |
| S9364DQ | 64 x 400G QSFP112 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | 2 x CRPS | 6 x Fan Modules (front-to-back airflow) |
| S9264BQ | 64 x 200G QSFP56 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | 2 x CRPS | 4 x Fan Modules (front-to-back airflow) |
| S9224BQ-6DD | 24 x 200G QSFP56+6 x 400G QSFPDD | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | 2 x CRPS | 4 x Fan Modules (front-to-back airflow) |
| S9164C | 64 x 100G QSFP28 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | 2 x CRPS | 4 x Fan Modules (front-to-back airflow) |
Packet Switch capacity (Tbps)
- > S9432OF : 51.2 Tbps (bidirectional)
- > S9332DQ : 25.6Tbps(bidirectional)
- > S9364DQ : 51.2 Tbps (bidirectional)
- > S9264BQ : 25.6Tbps(bidirectional)
- > S9224BQ-6DD : 25.6Tbps(bidirectional)
- > S9164C : 25.6Tbps(bidirectional)
Dimensions (W x H x D) without package
- > S9432OF : 44.2 x 8.8 x 56cm
- > S9332DQ : 44.2 x 4.4 x 49.7cm
- > S9364DQ :
- > S9264BQ :
- > S9224BQ-6DD :
- > S9164C :
Layer 2/Layer 3 Throughput (Gpps)
- > S9432OF: ? Gpps (bidirectional)
- > S9332DQ:
- > S9364DQ:
- > S9264BQ:
- > S9224BQ-6DD:
- > S9164C:
Weight (Net weight/Gross weight)
- > S9432OF: 11.8kg/16kg
- > S9332DQ:
- > S9364DQ:
- > S9264BQ:
- > S9224BQ-6DD:
- > S9164C:

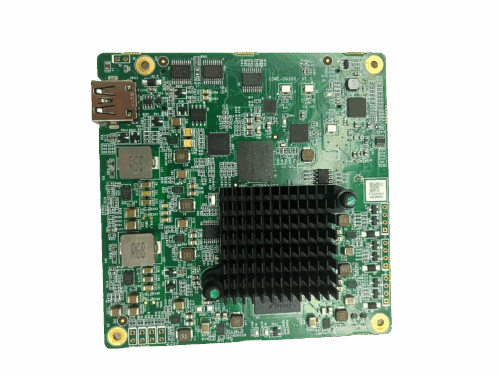

CPU
- > Dual-core processor, ARM A53
MTBF
- > All Model ≥90000H
Memory
- > eMMc: 8GB on all models
- > DRAM: 2GB on all models
Environmental ranges
- > Operating temperature: 0ºC to 45ºC
- > Storage temperature: -40ºC to 70ºC
- > Running Humidity: 10% to 90% (No condensation)
- > Store Humidity: 5 to 95% (No condensation)
Temperature alarm
- > Alarm threshold: 50ºC
The S9 Series switches support varied management ways, include console port / in-band network ports / out-of-band network port. Support SNMP v1/v2/v3, Support CLI (Command Line Interface), web management, Telnet and FTP connection. Support OAM to make management more convenient, and support SSH2.0, etc. to ensure security of management.
HOS allows you to quickly configure common configuration items using a visual WEB GUI, which lowers the application threshold for users.
Software Specifications
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo. Sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.
| Items | Description |
|---|---|
| S9432OF | 800G Data Center Switch, with 32*800G OSFP, Dual power supply modules(C13), 4 hot-swappable fan modules. |
| S9332DQ | Data Center switch, 32*400G QSFP112, 2*hot swappable power module, 6*hot swappable intelligent fan module |
| S9364DQ | Data Center switch, 64*400G QSFP112, 2*hot swappable power module, 6*hot swappable intelligent fan module |
| S9264BQ | Data Center switch, 64*200G QSFP56, N/A*hot swappable power module, N/A*hot swappable intelligent fan module |
| S9224BQ-6DD | Data Center switch, 24*200G QSFP56, N/A*hot swappable power module, N/A*hot swappable intelligent fan module |
| S9164C | Data Center switch, 64*100G QSFP28, 2*hot swappable power module, 4*hot swappable intelligent fan module |
| Items | Description |
|---|---|
| Software License | MS, L3 enhance features software license key, Preinstalled |
| Items | Front Mounting | Rear Mounting | Screw | Power Cord | Console (RS232 to RJ45) | Grounding Cable |
|---|---|---|---|---|---|---|
| S9432OF | ∎ | ∎ | ∎ | ∎ | ∎ | ∎ |
| S9332DQ | ∎ | ∎ | ∎ | ∎ | ∎ | ∎ |
| S9364DQ | ∎ | ∎ | ∎ | ∎ | ∎ | ∎ |
| S9264BQ | ∎ | ∎ | ∎ | ∎ | ∎ | ∎ |
| S9224BQ-6DD | ∎ | ∎ | ∎ | ∎ | ∎ | ∎ |
| S9164C | ∎ | ∎ | ∎ | ∎ | ∎ | ∎ |
