Description
| Items | AC | DC | AFO | AFI | Power Input | FAN |
|---|---|---|---|---|---|---|
| S8332C | 〇 | 〇 | 〇 | 〇 | 2 | 4 |
| S8324C | 〇 | 〇 | 〇 | 〇 | 2 | 4 |
| S8248N-8C | 〇 | 〇 | 〇 | 〇 | 2 | 5 |
| S8148T-8C-EI | 〇 | 〇 | 〇 | 〇 | 2 | 4 |
| S8148T-8C-SI | 〇 | X | 〇 | X | 1 | 4 |
| S8148X-8C-SI | 〇 | X | 〇 | X | 1 | 4 |
| S8148X-8C-DI | 〇 | X | 〇 | X | 2 | 4 |
| S8148V-8C-EI | 〇 | 〇 | 〇 | 〇 | 2 | 2 |
| S8148V-8C-SI | 〇 | X | 〇 | X | 1 | 5 |
| Models | Ethernet Ports | Management | PSU 1/PSU 2 | Cooling |
|---|---|---|---|---|

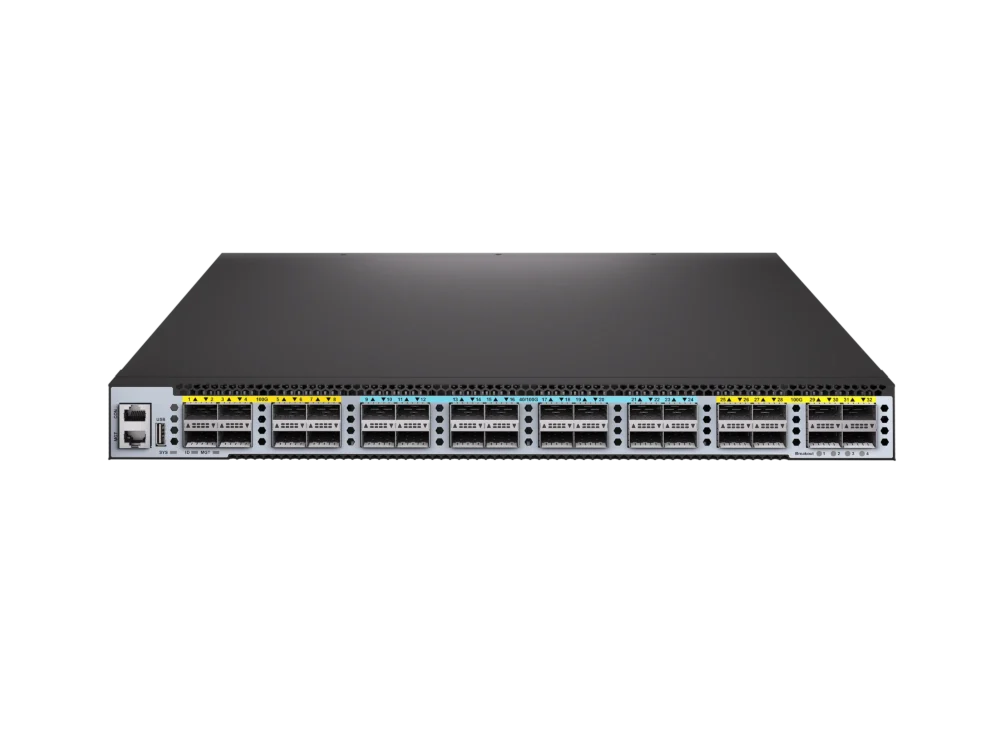

| S8332C | 32 x 100G QSFP 28 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | 550W / 550W CRPS | 4 x Fan Modules (front-to-back airflow) |
| S8324C | 24 x 100G QSFP 28 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | 550W / 550W CRPS | 4 x Fan Modules (front-to-back airflow) |

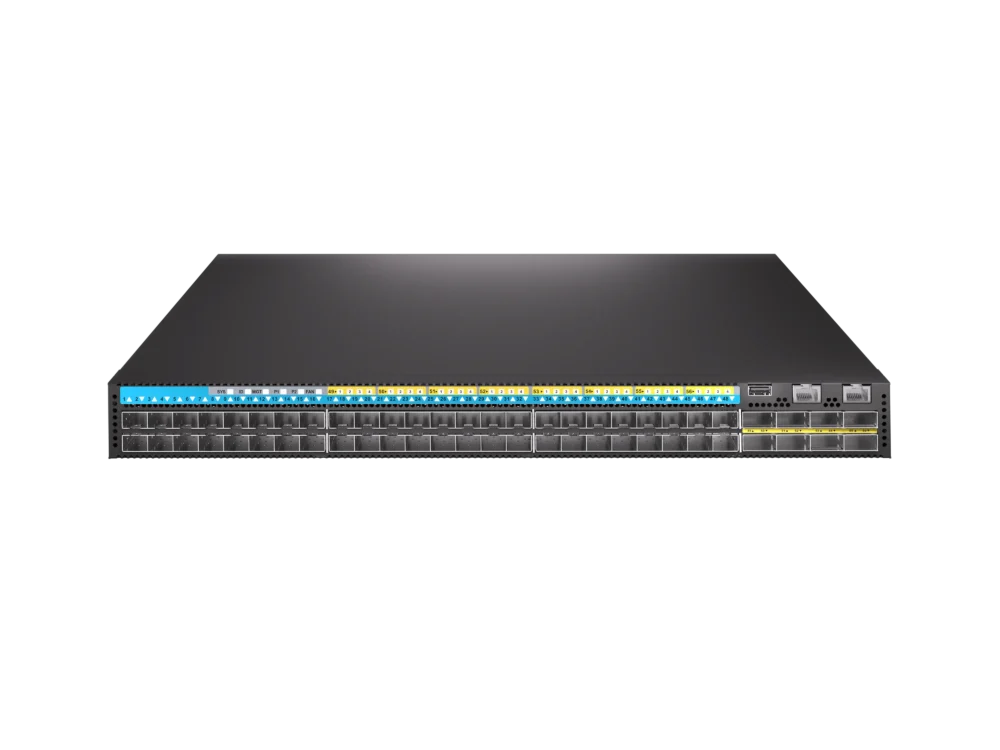

| S8248N-8C | 48 x 10G/25G SFP28 + 8 x 100G QSFP28 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | 550W /550W CRPS | 5 x Fan Modules (front-to-back airflow) |

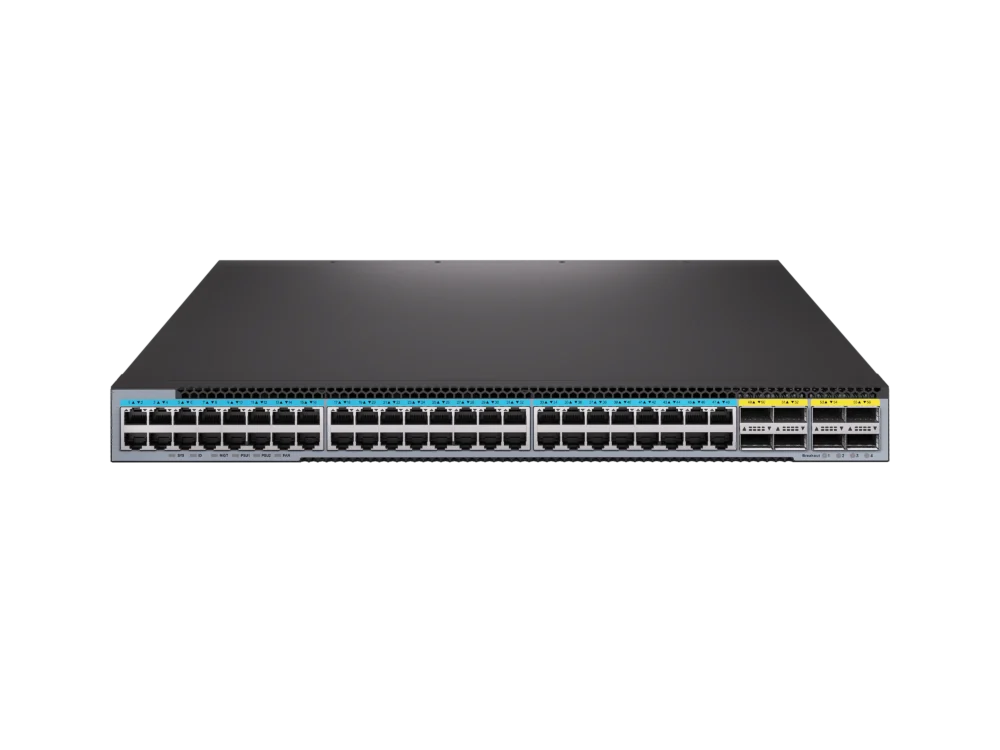

| S8148T-8C-EI | 48 x100M/1G/2.5G/5G/10G Base-T + 8 x 100G QSFP 28 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | 550W / 550W CRPS | 4 x Fan Modules (front-to-back airflow) |
| S8148T-8C-SI | 48 x100M/1G/2.5G/5G/10G Base-T + 8 x 100G QSFP 28 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | 550W / 550W CRPS | 4 x Fan Modules (front-to-back airflow) |

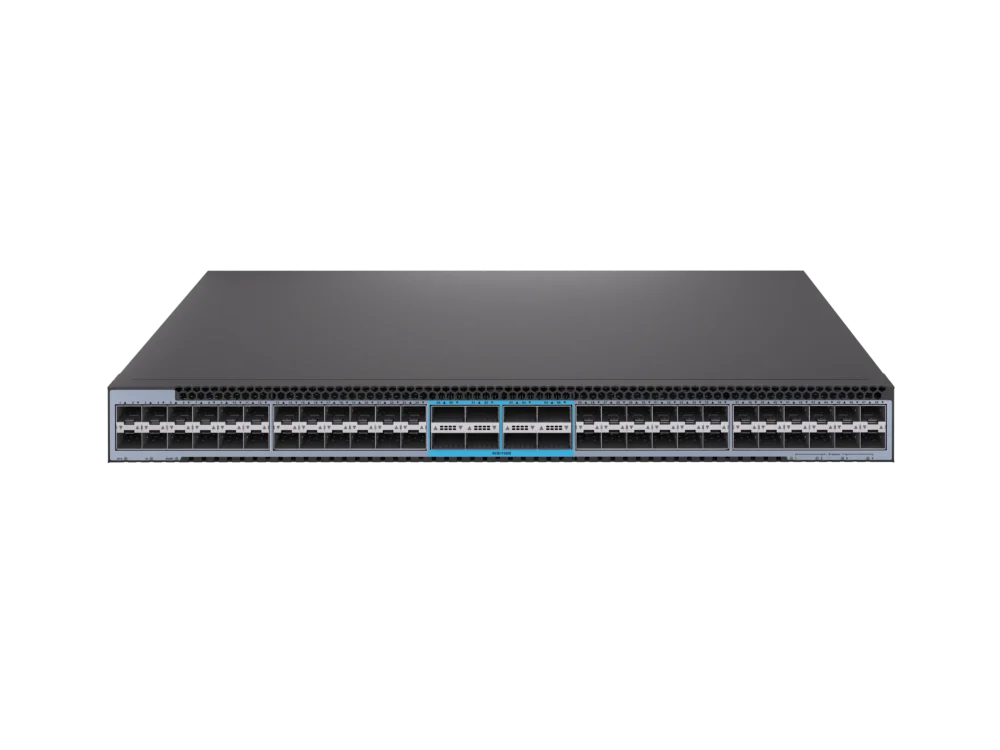

| S8148X-8C-SI | 48 x 10G SFP+ + 8 x 100G QSFP 28 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | Fixed single power supply | 4 x fixed fans (front-to-back airflow) |
| S8148X-8C-DI | 48 x 10G SFP+ + 8 x 100G QSFP 28 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | Fixed dual power supplies | 4 x fixed fans (front-to-back airflow) |
| S8148V-8C-EI | 48 x 100M/1G/2.5G/5G Base-T, 8x100G QSFP28 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | 350W / 350W CRPS | 2 x Fan Modules (front-to-back airflow) |
| S8148V-8C-SI | 48 x 100M/1G/2.5G/5G Base-T, 8x100G QSFP28 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | Fixed single power supply | 5 x Fixed fans (front-to-back airflow) |
Packet Switch capacity (Tbps)
- > S8332C-EI: 6.4 Tbps (bidirectional)
- > S8324C-EI: 4.8 Tbps (bidirectional)
- > S8248N-8C-EI: 4 Tbps (bidirectional）
- > S8148T-8C-EI: 2560Gbps (bidirectional)
- > S8148X-8C-SI: 2560Gbps (bidirectional)
- > S8148X-8C-DI: 2560Gbps (bidirectional)
- > S8148V-8C-EI: 2080Gbps (bidirectional)
- > S8148V-8C-SI: 2080Gbps (bidirectional)
Dimensions (W x H x D) without package
- > S8332C-EI: 66.5x 15 x 56.5cm
- > S8324C-EI: 66.5x 15 x 56.5cm
- > S8248N-8C-EI: 66.5 x 15 x 56.5cm
- > S8148T-8C-EI: 44.2 x 4.4 x 42 cm
- > S8148X-8C-SI: 44.2 x 4.5 x 35.5 cm
- > S8148X-8C-DI: 44.2 x 4.4 x 41 cm
- > S8148V-8C-EI: 442*44*420mm
- > S8148V-8C-SI: 442*44*357mm
Layer 2/Layer 3 Throughput (Gpps)
- > S8332C-EI: 9.52 Gpps (bidirectional)
- > S8324C-EI: 7.14 Gpps (bidirectional)
- > S8248N-8C-EI: 5.95 Gpps (bidirectional)
- > S8148T-8C-EI: 3809.28Mpps (bidirectional)
- > S8148X-8C-SI: 3809.28Mpps (bidirectional)
- > S8148X-8C-DI: 3809.28Mpps (bidirectional)
- > S8148V-8C-EI: 1547.52Mpps (bidirectional)
- > S8148V-8C-SI: 1547.52Mpps (bidirectional)
Weight (Net weight/Gross weight)
- > S8332C-EI: 9.2 kg/11kg
- > S8324C-EI: 8.9 kg/10.7kg
- > S8248N-8C-EI: 9kg/12.5kg
- > S8148T-8C-EI: 8.18kg/10.3kg
- > S8148X-8C-SI: 5.56kg/7.66kg
- > S8148X-8C-DI: 6.8kg/8.9kg
- > S8148V-8C-EI: 8.18kg/10.3kg
- > S8148V-8C-SI: 6.8kg/8.9kg
Power consumption
Worst case, all ports used, line-rate traffic
- > S8332C-EI: 189W
- > S8324C-EI: 171W
- > S8248N-8C-EI: 168W
- > S8148T-8C-EI: 260W
- > S8148X-8C-SI: 135W
- > S8148V-8C-EI:
- > S8148V-8C-SI:
Typical power consumption
- > S8332C-EI: 180.4W
- > S8324C-EI: 112W
- > S8248N-8C-EI: 154W
- > S8148T-8C-EI: 257W
- > S8148X-8C-SI: 101W
- > S8148V-8C-EI:
- > S8148V-8C-SI:
CPU
- > Dual-core processor, ARM A53
MTBF
- > All Model ≥ 90000H
Memory
- > eMMc: 8GB on all models
- > DRAM: 2GB on all models
Environmental ranges
- > Operating temperature: 0ºC to 45ºC
- > Storage temperature: -40ºC to 70ºC
- > Running Humidity: 10% to 90% (No condensation)
- > Store Humidity: 5 to 95% (No condensation)
Temperature alarm
- > Alarm threshold: 50ºC

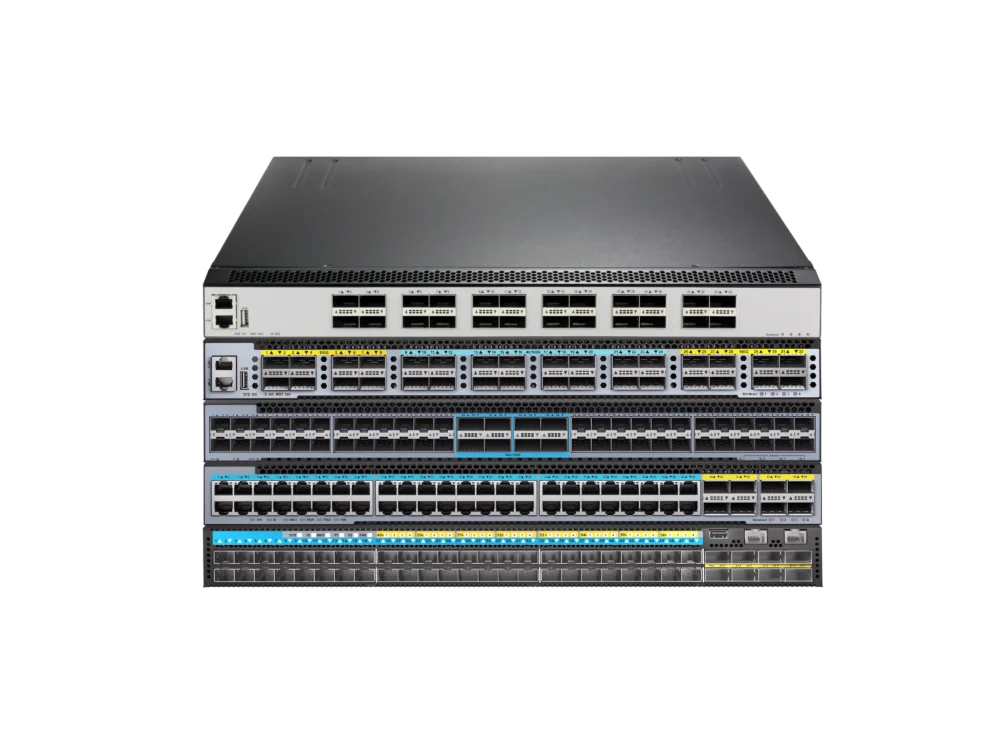

The S8 Series switches support varied management ways, include console port / in-band network ports / out-of-band network port. Support SNMP v1/v2/v3, Support CLI (Command Line Interface), web management, Telnet and FTP connection. Support OAM to make management more convenient, and support SSH2.0, etc. to ensure security of management.
HOS allows you to quickly configure common configuration items using a visual WEB GUI, which lowers the application threshold for users.
Software Specifications
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo. Sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.
| Items | Description |
|---|---|
| S8332C | Data Center switch, 32*100G QSFP28, 2*CRPS550W hot swappable power module, 4*hot swappable intelligent fan module |
| S8324C | Data Center switch, 24*100G QSFP28, 2*CRPS550W hot swappable power module, 4*hot swappable intelligent fan module |
| S8248N-8C | Data Center switch, 48*25G SFP28, 8*100G QSFP28, 2*hot swappable power module, 5*hot swappable intelligent fan module |
| S8148T-8C-EI | Data Center switch, 48*100M/1G/2.5G/5G/10G Base-T, 8*100G QSFP28, 2*CRPS550W hot swappable power module, 4*hot swappable intelligent fan module |
| S8148T-8C-SI | Enterprise and Campus Network switch,48*100M/1G/2.5G/5G/10G Base-T,8*100G QSFP28, N/A*fixed power supply. N/A*fixed fan |
| S8148X-8C-SI | Enterprise and Campus Network switch,48*10G SFP+, 8*100G QSFP28, 1*200W fixed power supply,4*fixed fan |
| S8148X-8C-DI | Enterprise and Campus Network switch,48*10G SFP+, 8*100G QSFP28, 2*200W fixed power supply, 4*fixed fan |
| S8148V-8C-EI | Data Center switch, 48*100M/1G/2.5G/5G Base-T, 8*100G QSFP28, 2*CRPS350W hot swappable power module, 2*hot swappable intelligent fan module |
| S8148V-8C-SI | Enterprise and Campus Network switch,48*100M/1G/2.5G/5G Base-T, 8*100G QSFP28, 1*300W fixed power supply, 4*fixed fan |
| Items | Description |
|---|---|
| PSU-200-AC-AFO | S8 Series 200 W AC power supply (front-to-back airflow) |
| PSU-300-AC-AFO | S8 Series 300 W AC power supply (front-to-back airflow) |
| PSU-350-DC-AFO | S8 Series 350W DC power supply (front-to-back airflow) Input: 48V DC; Output: 48V DC |
| PSU-550-AC-AFO | S8 Series 550W AC power supply (front-to-back airflow) Input: 100–240V AC; Output: 12V DC |
| PSU-550-DC-AFO | S8 Series 550W DC power supply (front-to-back airflow) Input: 48V DC; Output: 48V DC |
| Items | Description |
|---|---|
| Software License | MS, L3 enhance features software license key, Preinstalled |
| Items | Front Mounting | Rear Mounting | Screw | Power Cord | Console (RS232 to RJ45) | Grounding Cable |
|---|---|---|---|---|---|---|
| S8332C | ∎ | ∎ | ∎ | ∎ | ∎ | ∎ |
| S8324C | 2 | 2 | 14 | 2 | 1 | ∎ |
| S8248N-8C | 2 | 2 | 14 | 2 | 1 | ∎ |
| S8148T-8C-EI | 2 | 2 | 14 | 2 | 1 | ∎ |
| S8148T-8C-SI | ∎ | ∎ | ∎ | ∎ | ∎ | ∎ |
| S8148X-8C-SI | 2 | 2 | 14 | 2 | 1 | ∎ |
| S8148X-8C-DI | 2 | 2 | 14 | 2 | 1 | ∎ |
| S8148V-8C-EI | 2 | 2 | 14 | 2 | 1 | ∎ |
| S8148V-8C-SI | 2 | 2 | 14 | 2 | 1 | ∎ |
