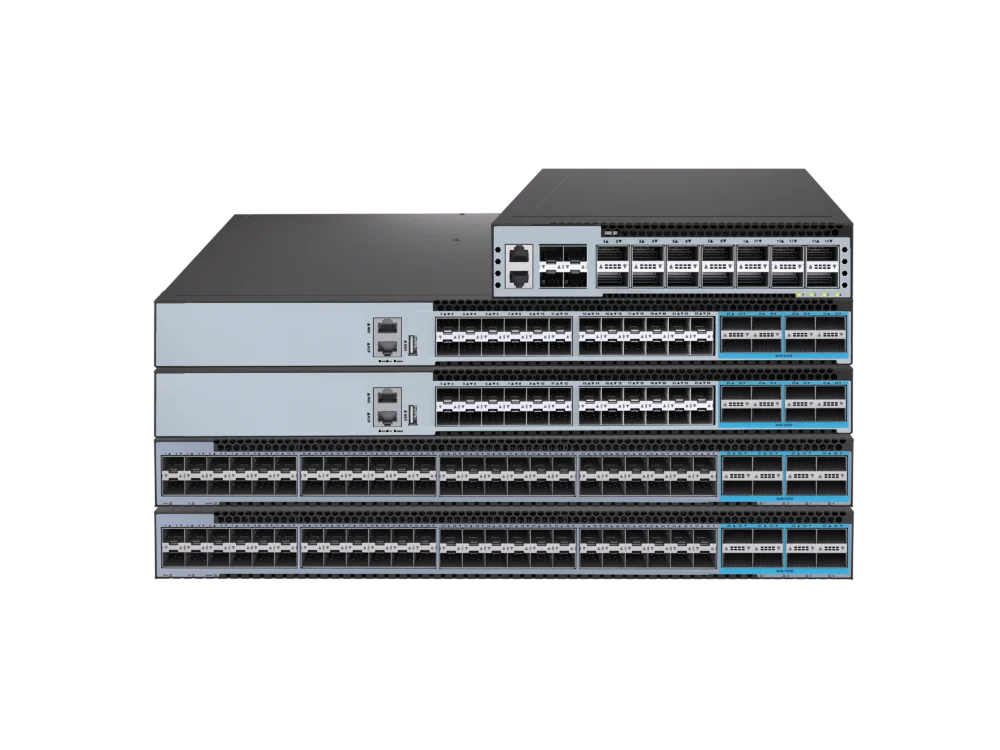

Description

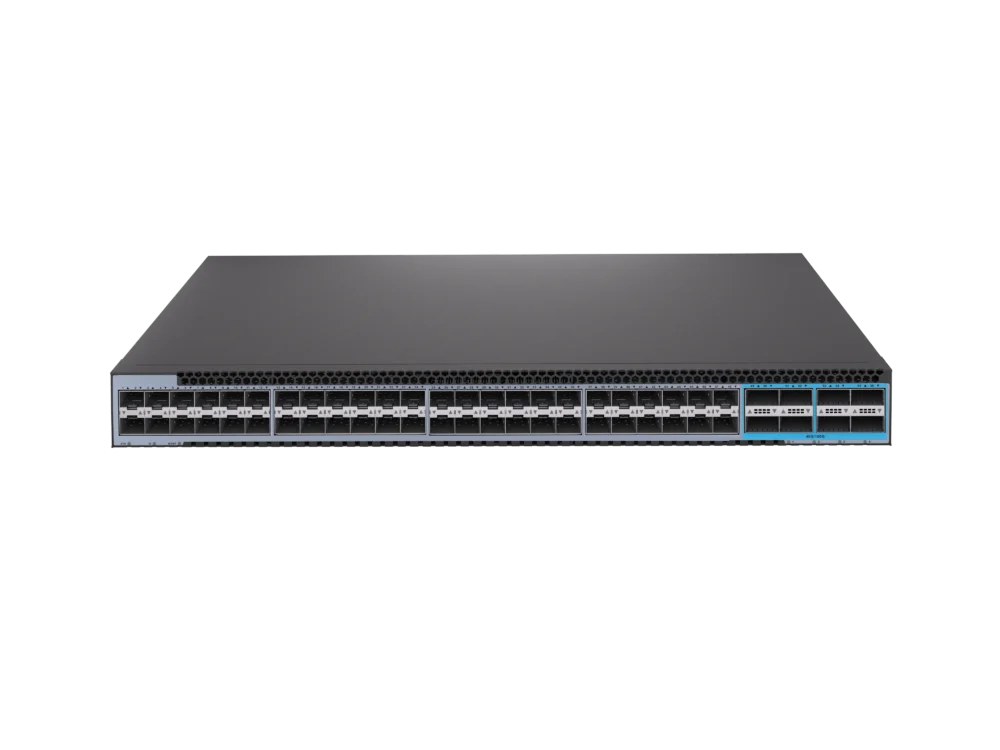

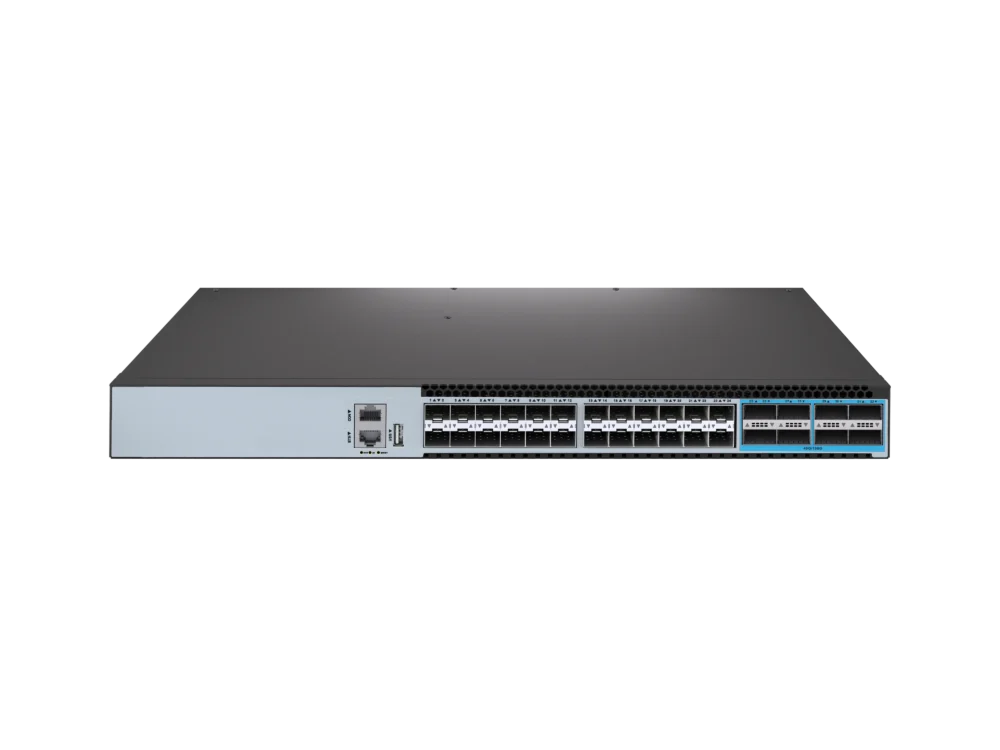

| Items | AC | DC | AFO | AFI | Power Input | FAN |
|---|---|---|---|---|---|---|
| S7314CH-4N-EI | ◯ | ◯ | ◯ | ◯ | 2 | 2 |
| S7224N-8C | ◯ | ◯ | ◯ | ◯ | 2 | 4 |
| S7148X-8C-EI | ◯ | ◯ | ◯ | ◯ | 2 | 2 |
| S7148X-8C-SI | ◯ | X | ◯ | X | 1 | 4 |
| S7124X-8C-EI | ◯ | ◯ | ◯ | ◯ | 2 | 2 |
| S7124X-8C-SI | ◯ | X | ◯ | X | 1 | 4 |
| Models | Ethernet Ports | Management | PSU 1/PSU 2 | Cooling |
|---|---|---|---|---|
| S7314CH-4N-EI | 14 x 100G QSFP 28 +4x 25G SFP28 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | 300W / 300W CRPS | 4 x Fan Modules (front-to-back airflow) |
| S7224N-8C | 24 x 25G SFP 28 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | 350W / 350W CRPS | 4 x Fan Modules (front-to-back airflow) |
| S7148X-8C-EI | 48 x 10G SFP+ + 8 x 100G QSFP 28 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | 550W / 550W CRPS | 4 x Fan Modules (front-to-back airflow) |
| S7148X-8C-SI | 48 x 10G SFP+ + 8 x 100G QSFP 28 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | Fixed single power supply | 4 x fixed fans (front-to-back airflow) |
| S7124X-8C-EI | 24 x 10G SFP+ + 8 x 100G QSFP 28 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | 350W / 350W CRPS | 2 x Fan Modules (front-to-back airflow) |
| S7124X-8C-SI | 24 x 10G SFP+ + 8 x 100G QSFP 28 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | Fixed single power supply | 4 x fixed fans (front-to-back airflow) |
Packet Switch capacity (Tbps)
- > S7314CH-4N-EI: 2560 Gbps(bidirectional)
- > S7224N-8C: 2560 Gbps(bidirectional)
- > S7148X-8C-EI: 2560 Gbps (bidirectional)
- > S7148X-8C-SI: 2560 Gbps (bidirectional)
- > S7124X-8C-EI: 2080 Gbps (bidirectional)
- > S7124X-8C-SI: 2080 Gbps (bidirectional)
Dimensions (W x H x D) without package
- > S7314CH-4N-EI : TBD
- > S7224N-8C : TBD
- > S7148X-8C-EI: 44.2 x 4.4 x 42 cm
- > S7148X-8C-SI : 44.2 x 4.5 x 35.5 cm
- > S7124X-8C-EI: 44.2 x 4.4 x 41 cm
- > S7124X-8C-SI: 44.2 x 4,4 x 35.7 cm
Layer 2/Layer 3 Throughput (Gpps)
- > S7314CH-4N-EI:3809.28Mpps (bidirectional)
- > S7224N-8C :3809.28Mpps (bidirectional)
- > S7148X-8C-EI: 3809.28Mpps (bidirectional)
- > S7148X-8C-SI: 3809.28Mpps (bidirectional)
- > S7124X-8C-EI: 3095.04Mpps (bidirectional)
- > S7124X-8C-SI: 3095.04Mpps (bidirectional)
Weight (Net weight/Gross weight)
- > S7314CH-4N-EI :TBD
- > S7224N-8C :TBD
- > S7148X-8C-EI: 8.18kg/10.3kg
- > S7148X-8C-SI: 5.56kg/7.66kg
- > S7124X-8C-EI: 5kg/8.5kg
- > S7124X-8C-SI: 4.03kg/6.5kg
Power consumption
Worst case, all ports used, line-rate traffic
- > S7314CH-4N-EI : TBD
- > S7224N-8C : TBD
- > S7148X-8C-EI: TBD
- > S7148X-8C-SI: TBD
- > S7124X-8C-EI: TBD
- > S7124X-8C-SI: TBD
Typical power consumption
- > S7314CH-4N-EI : TBD
- > S7224N-8C : TBD
- > S7148X-8C-EI: TBD
- > S7148X-8C-SI: TBD
- > S7124X-8C-EI: TBD
- > S7124X-8C-SI: TBD
CPU
- > Dual-core processor, ARM A53
MTBF
- > EI ≥ 90000H
- > -SI ≥ 70000H
Memory
- > eMMc: 8GB on all models
- > DRAM: 2GB on all models
Environmental ranges
- > Operating temperature: 0ºC to 45ºC
- > Storage temperature: -40ºC to 70ºC
- > Running Humidity: 10% to 90% (No condensation)
- > Store Humidity: 5 to 95% (No condensation)
Temperature alarm
- > Alarm threshold: 50ºC
The S7 Series switches support varied management ways, include console port / in-band network ports / out-of-band network port. Support SNMP v1/v2/v3, Support CLI (Command Line Interface), web management, Telnet and FTP connection. Support OAM to make management more convenient, and support SSH2.0, etc. to ensure security of management.

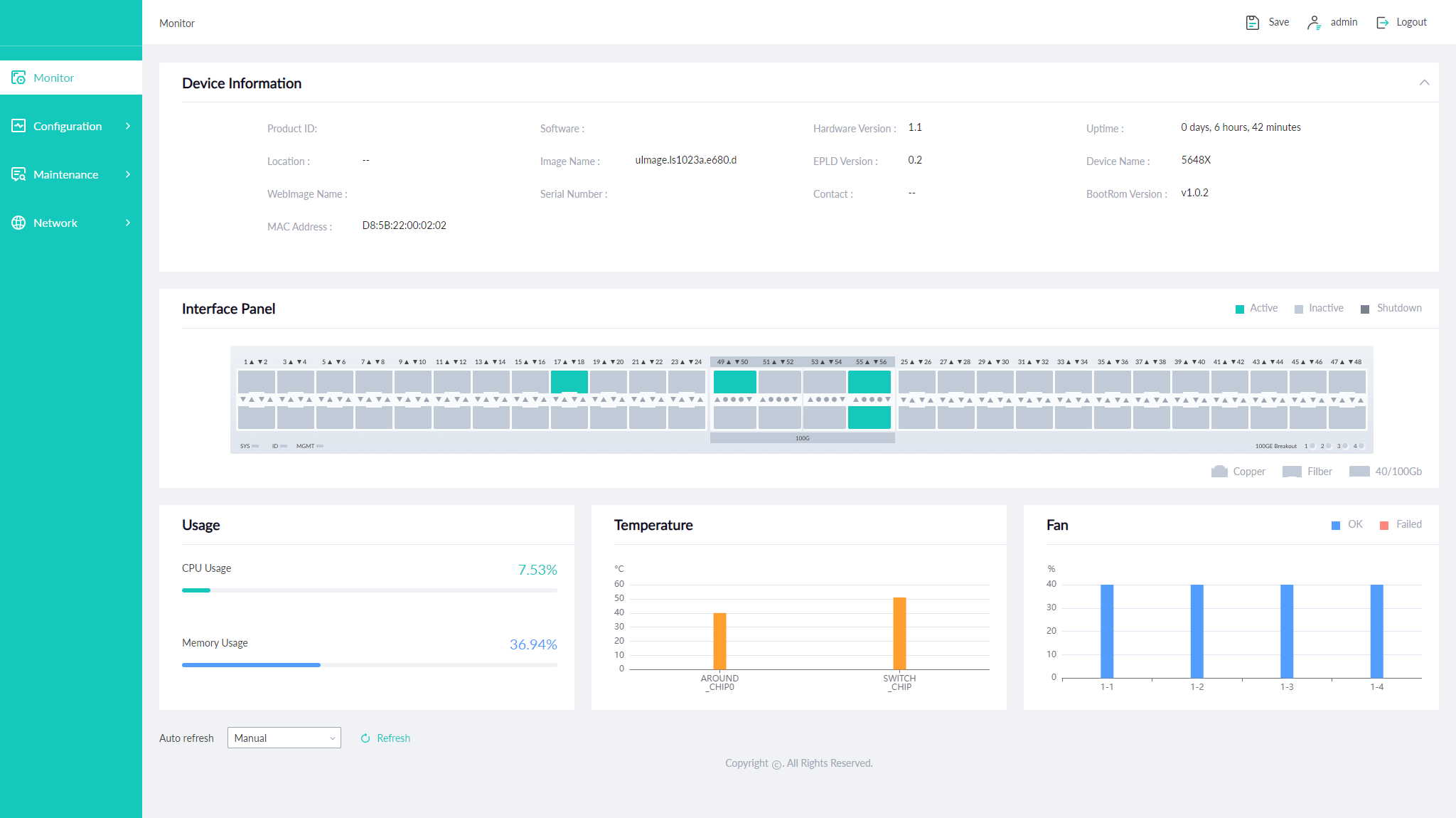

HOS allows you to quickly configure common configuration items using a visual WEB GUI, which lowers the application threshold for users.
Software Specifications
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo. Sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.
| Items | Description |
|---|---|
| S7314CH-4N-EI | 100G Data Center Switch with 14*100G QSFP28,4*25G SFP28, Dual power supply modules, 2 hot-swap fan modules |
| S7224N-8C | 25G Data Center switch with 24*25G SFP28，8*100G QSFP28, |
| Dual power supply modules, 2 hot-swap fan modules | |
| S7148X-8C-EI | 10G Data Center Switch with 48*10G SFP+,8*100G QSFP28, Dual power supply modules, 4 hot-swap fan modules |
| S7148X-8C-SI | 10G Enterprise and Campus Network Switch with 48*10G SFP+, 8*100G QSFP28, Fixed single power supply , 4 Fixed Fans |
| S7124X-8C-EI | 10G Data Center Switch with 24*10G SFP+, 8*100G QSFP28, Dual power supply modules, 2 hot-swap fan modules |
| S7124X-8C-SI | 10G Enterprise and Campus Network Switch with 24*10G SFP+,8*100G QSFP28, Fixed single power supply , 4 Fixed Fans |
| Items | Description |
|---|---|
| PSU-200-AC-AFO | S7 Series 200 W AC power supply (front-to-back airflow) |
| PSU-350-AC-AFO | S7 Series 350 W AC power supply (front-to-back airflow) |
| PSU-350-DC-AFO | S7 Series 350W DC power supply (front-to-back airflow) |
| PSU-550-AC-AFO | S7 Series 550 W AC POE power supply (front-to-back airflow) |
| PSU-550-DC-AFO | S7 Series 550 W DC POE power supply (front-to-back airflow) |
| Items | Description |
|---|---|
| Software License | MS, L3 enhance features software license key, Preinstalled |
| Items | Front Mounting | Rear Mounting | Screw | Power Cord | Console (RS232 to RJ45) | Grounding Cable |
|---|---|---|---|---|---|---|
| S7314CH-4N-EI | 2 | 2 | 14 | 2 | 1 | 1 |
| S7224N-8C | 2 | 2 | 14 | 2 | 1 | 1 |
| S7148X-8C-EI | 2 | 2 | 14 | 2 | 1 | 1 |
| S7148X-8C-SI | 2 | / | 14 | 1 | 1 | 1 |
| S7124X-8C-EI | 2 | 2 | 14 | 2 | 1 | 1 |
| S7124X-8C-SI | 2 | / | 14 | 1 | 1 | 1 |
