S5 Series 1G

S5-Series products are designed base on ZEGMA’s Skyline MAC SOC platform, Integrated with the advanced processes and technologies, supports up to 440G I/O bandwidth and maximum 44*10G SFP+ port. Widely use to build high speed campus network , Enterprise and SMBs network.

Key features
  • Support VXLAN/EVPN tunnel,SRV6 features.
  • RDMA end-to-end data forwarding, build a lossless network without packet loss
  • Support MLAG, cross-device link aggregation technology
  • 10G-25G,100G Flexible port combination configuration
  • OEM services and Local manufacture support

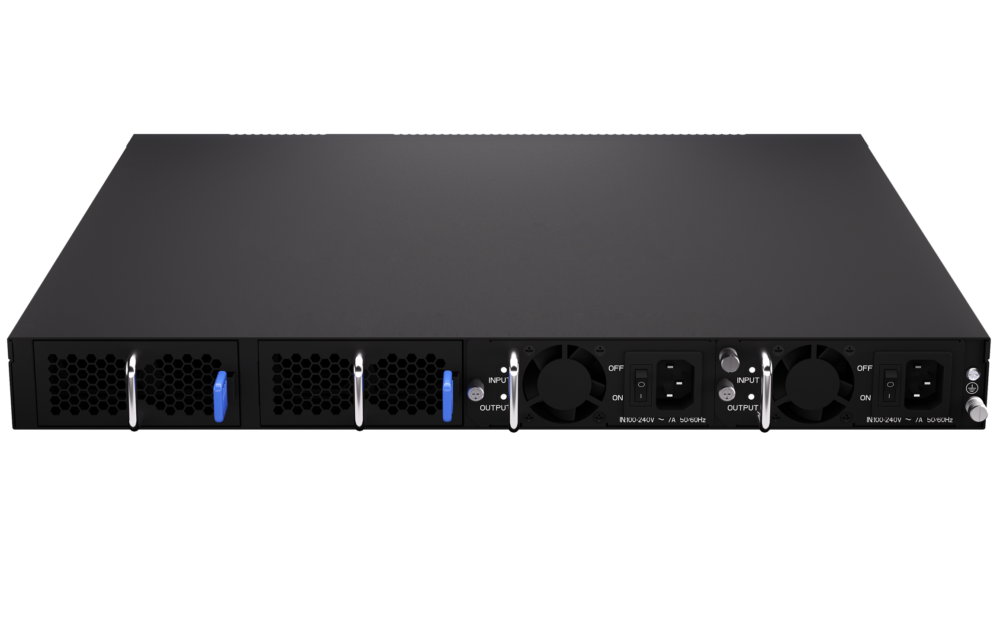

The S5-Series switches provide redundant hot-swappable power supplies (AC and DC are both available) and 4 bays with Field replaceable fan modules. Generally, airflow of this series is front to rear (AFO), but a customization of rear to front (AFI) airflow is also acceptable.

Send Enquiry Now

Description

ItemsACDCPoE PortsAFOAFIPower InputFAN
S5148G-4X2Q-EI◯◯X◯◯22
S5148G-4X2Q-SI◯XX◯X14
S5148GP-4X2Q-EI◯◯48◯X22
S5148GP-4X2Q-SI◯X48◯X14
S5148GPB-4X2Q-EI◯◯48◯X22
S5124G-4X2Q-EI◯◯X◯◯22
S5124G-4X2Q-SI◯XX◯X14
S5124GP-4X2Q-EI◯◯X◯◯22
S5124GP-4X2Q-SI◯X24◯X14
S5124GPB-4X2Q-EI◯◯24◯◯22
ModelsEthernet PortsManagementPSU 1/PSU 2Cooling

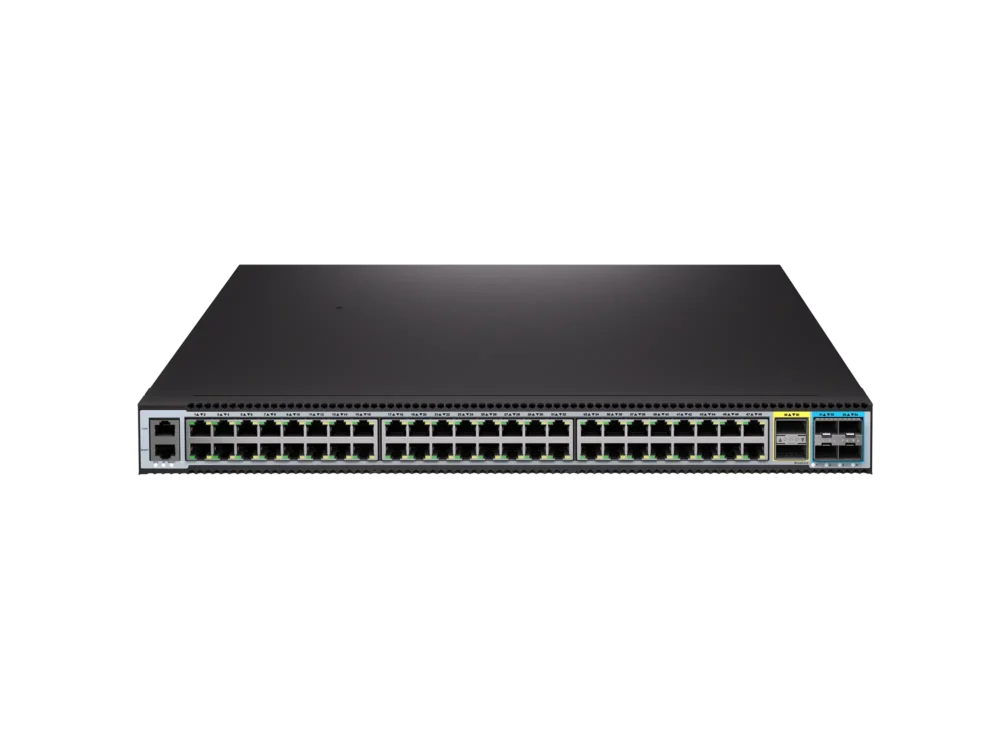

S5148G-4X2Q-EI48 x 10/100/1000Mb BaseT(PoE+ 30W) + 4 x 25G SFP28 + 2 x 40G QSFP+Console: RJ45 RS232
Ethernet: 1G Port		500W AC/500W AC hot-swappable Modules2 x hot-swappable Fan Modules (Front to Rear airflow)
S5148G-4X2Q-SI48 x 10/100/1000Mb BaseT + 4 x 25G SFP28 + 2 x 40G QSFP+Console: RJ45 RS232
Ethernet: 1G Port		Fixed one power supply4 x fixed Fans (Front to Rear airflow)

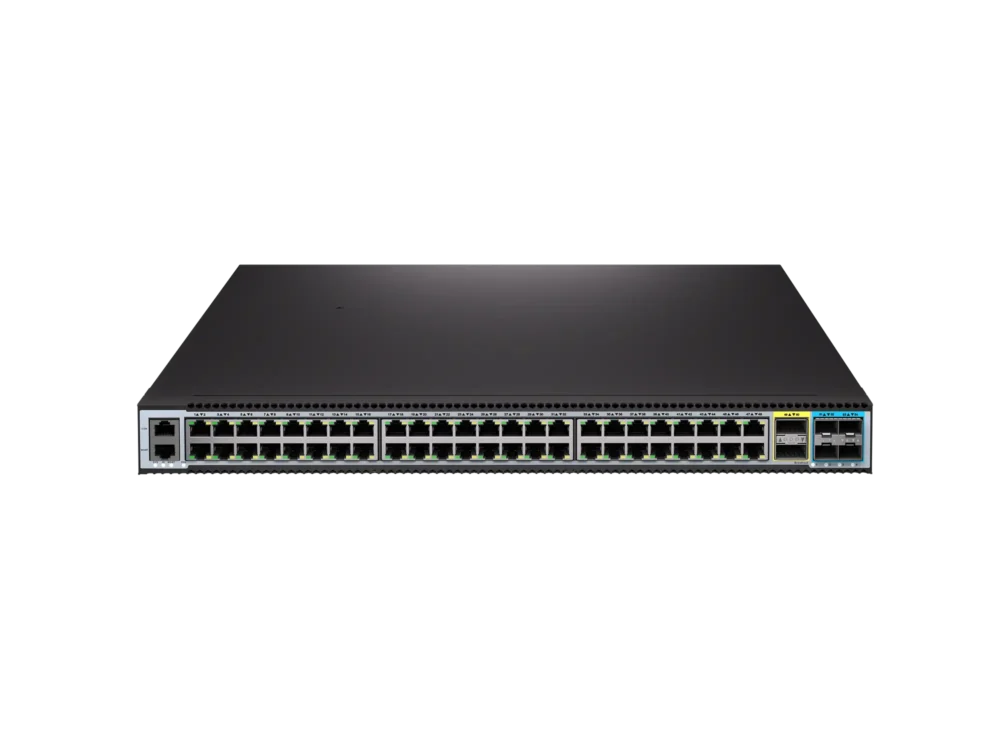

S5148GP-4X2Q-EI48 x 10/100/1000Mb BaseT(PoE++ 90W) + 4 x 25G SFP28 + 2 x 40G QSFP+Console: RJ45 RS232
Ethernet: 1G Port		1200W AC/1200W AC hot-swappable Modules2 x hot-swappable Fan Modules (Front to Rear airflow)
S5148GP-4X2Q-SI48 x 10/100/1000Mb BaseT(PoE+ 30W) + 4 x 25G SFP28 + 2 x 40G QSFP+Console: RJ45 RS232
Ethernet: 1G Port		Fixed one power supply4 x fixed Fans (Front to Rear airflow)

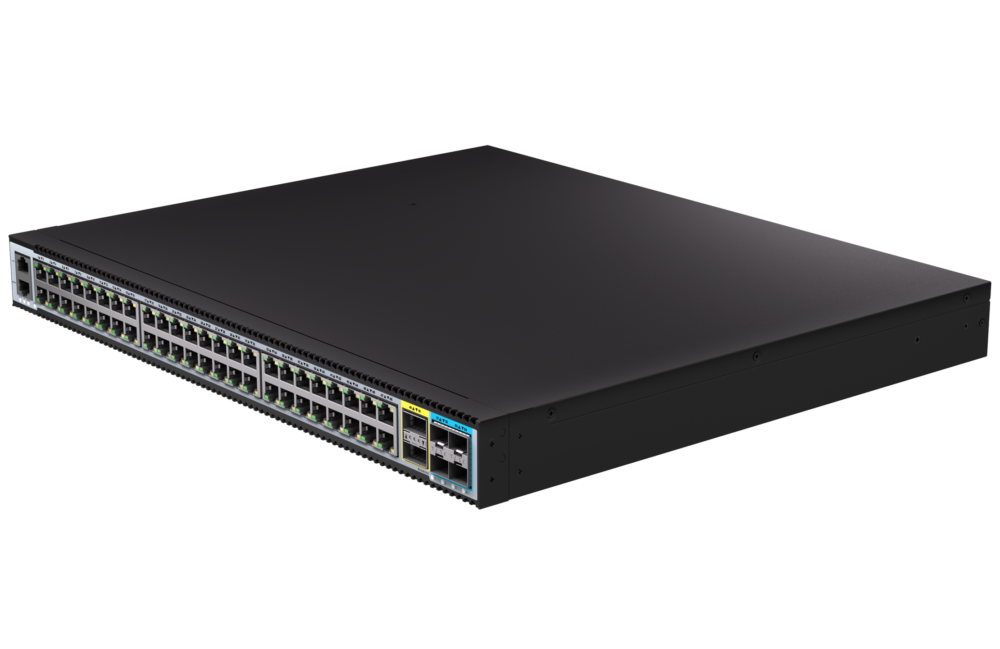

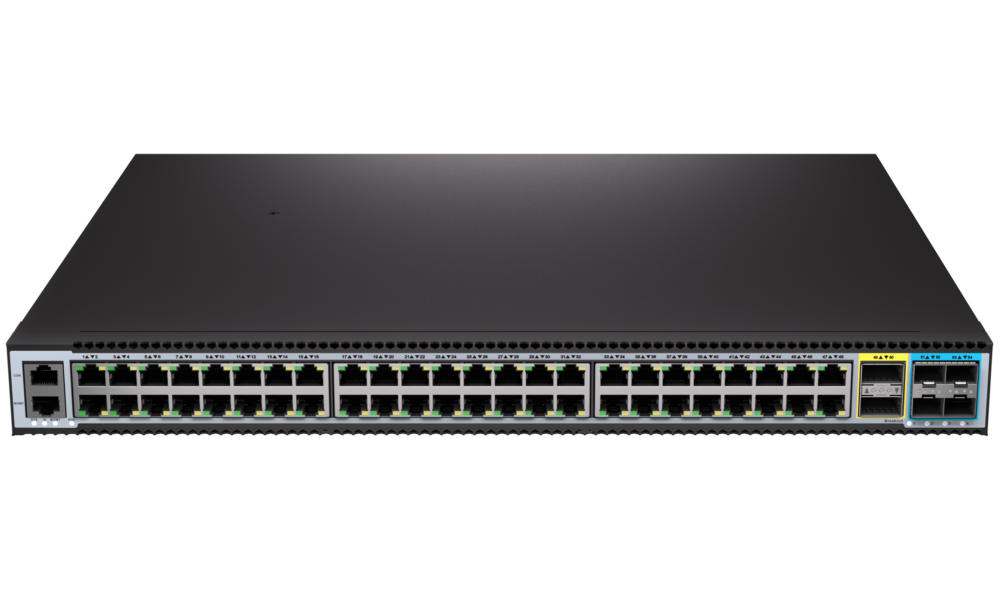

S5148GPB-4X2Q-EI48 x 10/100/1000Mb BaseT(PoE++ 90W) + 4 x 25G SFP28 + 2 x 40G QSFP+Console: RJ45 RS232
Ethernet: 1G Port		1200W AC/1200W AC hot-swappable Modules2 x hot-swappable Fan Modules (Front to Rear airflow)

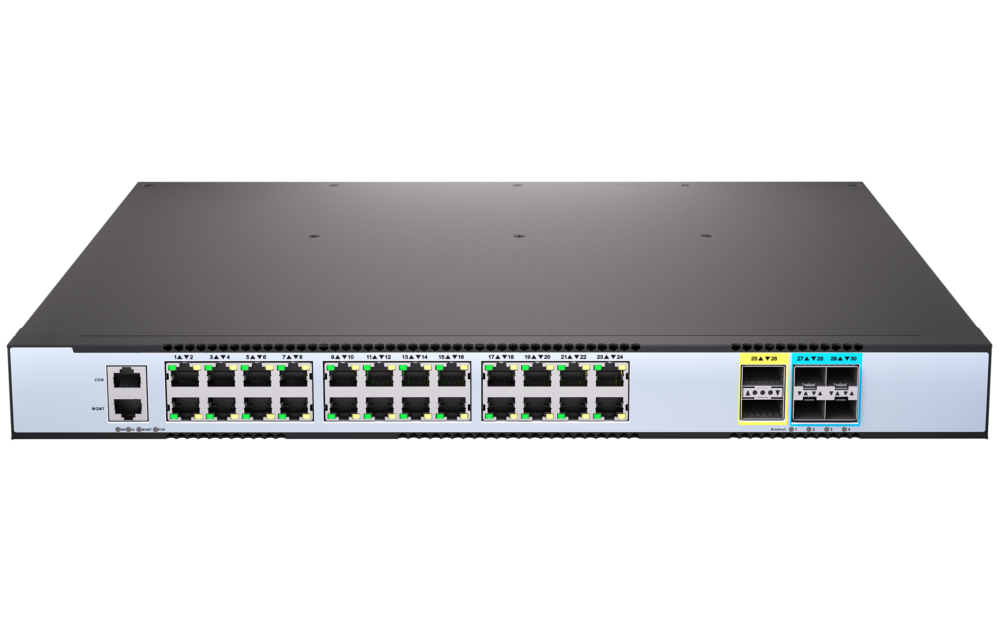

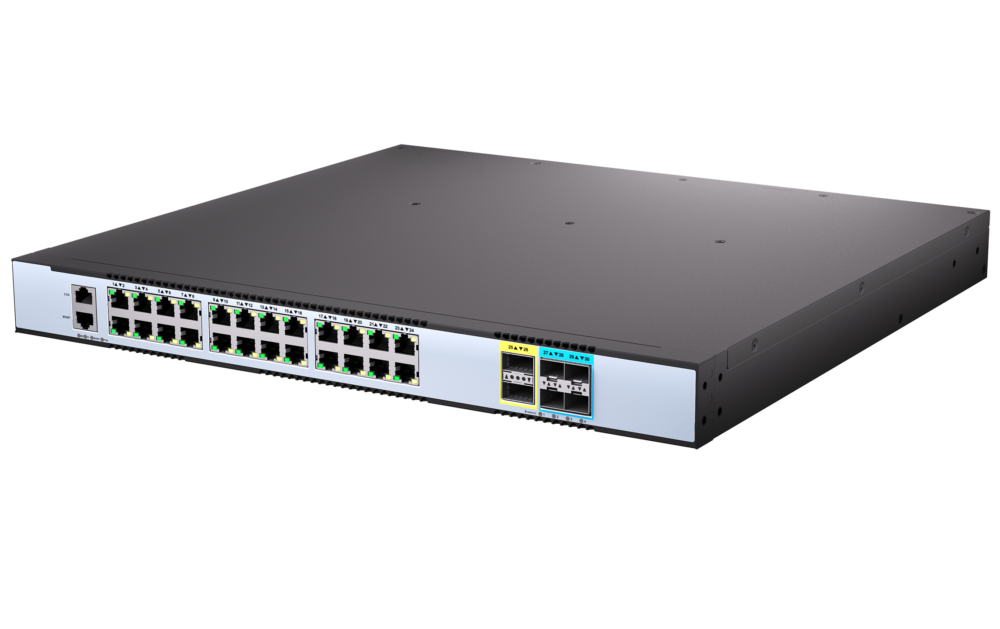

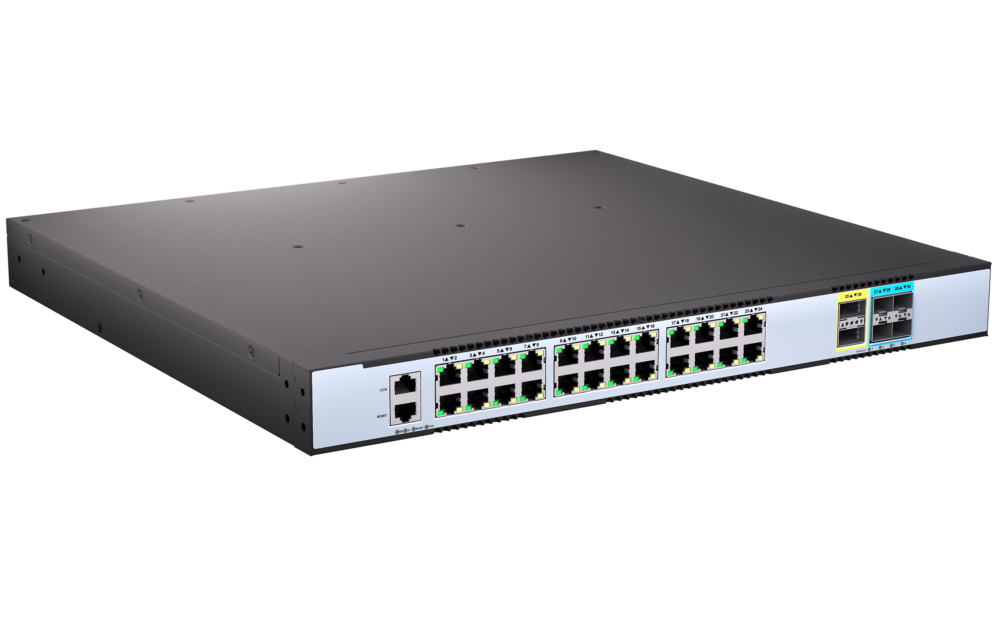

S5124G-4X2Q-SI24 x 10/100/1000Mb BaseT + 4 x 25G SFP28 + 2 x 40G QSFP+Console: RJ45 RS232
Ethernet: 1G Port		Fixed one power supply4 x fixed Fans (Front to Rear airflow)
S5124G-4X2Q-EI24 x 10/100/1000Mb BaseT + 4 x 25G SFP28 + 2 x 40G QSFP+Console: RJ45 RS232
Ethernet: 1G Port		120W AC/120W AC hot-swappable Modules2 x hot-swappable Fan Modules (Front to Rear airflow)
S5124GP-4X2Q-EI24 x 10/100/1000Mb BaseT(PoE+ 30W) + 4 x 25G SFP28 + 2 x 40G QSFP+Console: RJ45 RS232
Ethernet: 1G Port		500W AC/500W AC hot-swappable Modules2 x hot-swappable Fan Modules (Front to Rear airflow)
S5124GP-4X2Q-SI24 x 10/100/1000Mb BaseT(PoE+ 30W) + 4 x 25G SFP28 + 2 x 40G QSFP+Console: RJ45 RS232
Ethernet: 1G Port		Fixed one power supply4 x fixed Fans (Front to Rear airflow)

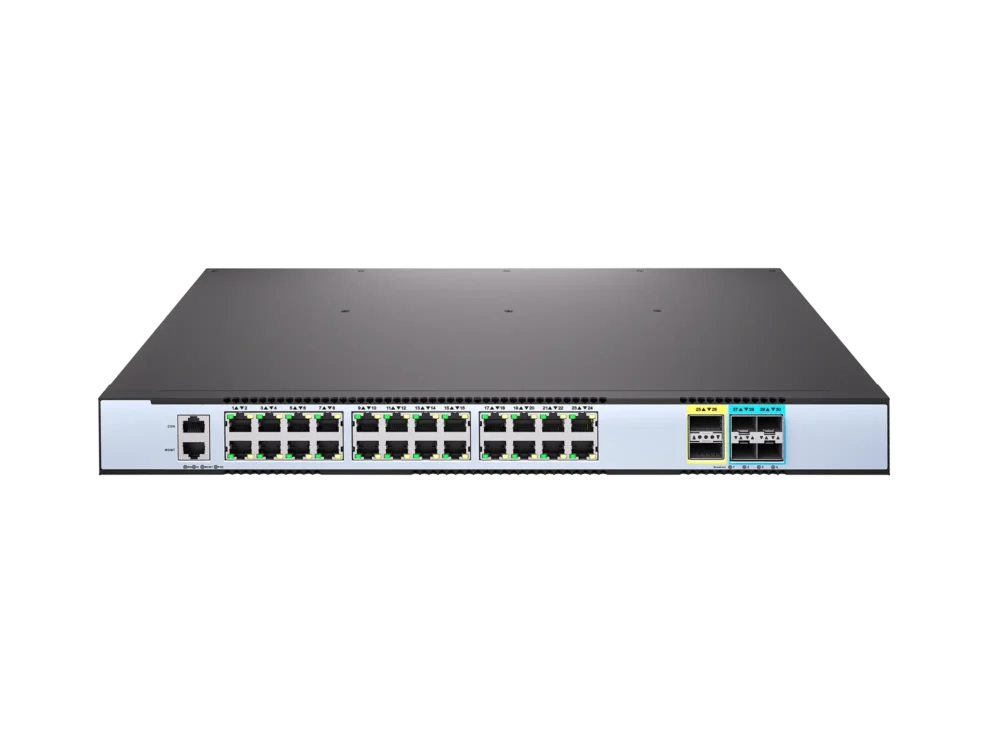

S5124GPB-4X2Q-EI24 x 10/100/1000Mb BaseT(PoE++ 90W) + 4 x 25G SFP28 + 2 x 40G QSFP+Console: RJ45 RS232
Ethernet: 1G Port		500W AC/500W AC hot-swappable Modules2 x hot-swappable Fan Modules (Front to Rear airflow)
ModelSwitch capacity (bidirectional)ThroughputDimensions (W x H x D)Consumption(W)Weight(kg) (Net/Gross)
S5148G-4X2Q-EI456Gbps678.53Mpps44.2*4.4*41607.16/9kg
S5148G-4X2Q-SI456Gbps678.53Mpps44.2*4.4*32.1724.09/6.33kg
S5148GP-4X2Q-EI456Gbps678.53Mpps44.2*4.4*41727.76/10kg
S5148GP-4X2Q-SI456Gbps678.53Mpps44.2*4.4*32.1865.38/7.62kg
S5148GPB-4X2Q-EI456Gbps678.53Mpps44.2*4.4*41728.36/10.6kg
S5124G-4X2Q-EI408Gbps607.10Mpps44.2*4.4*41606.67/9kg
S5124G-4X2Q-SI408Gbps607.10Mpps44.2*4.4*32513.9/6.14kg
S5124GP-4X2Q-EI408Gbps607.10Mpps44.2*4.4*37.1TBD7.36/9.6kg
S5124GP-4X2Q-SI408Gbps607.10Mpps44.2*4.4*37.1706.96/9.2kg
S5124GPB-4X2Q-EI408Gbps607.10Mpps44.2*4.4*41547.36/9.6kg
CPU
  • > Dual-core processor, ARM A53
Memory
  • > eMMc: 8GB on all models
  • > DRAM: 2GB on all models
MTBF
  • > -EI ≥90000H
  • > -SI ≥70000H
Environmental ranges
  • > Operating temperature: 0ºC to 45ºC
  • > Storage temperature: -40ºC to 70ºC
  • > Running Humidity: 10% to 90% (No condensation)
  • > Store Humidity: 5 to 95% (No condensation)
Temperature alarm
  • > Alarm threshold: 50ºC

The S5-Series switches support varied management ways, include console port / in-band network ports / out-of-band network port. Support SNMP v1/v2/v3, Support CLI (Command Line Interface), web management, Telnet and FTP connection. Support OAM to make management more convenient, and support SSH2.0, etc. to ensure security of management.

HOS allows you to quickly configure common configuration items using a visual WEB GUI, which lowers the application threshold for users.

Software Specifications

Unified Software Platform

After a decade of engineering refinement, we have developed a highly standardized intelligent software platform. Leveraging a fully modular architecture, it achieves “one codebase, full hardware compatibility.” The platform features a layered, decoupled design with the following core advantages:

  1. Platform-Core Foundation – Unified technical base with 100% platform-encapsulated core functions

  2. Modular Flexibility – 200+ configurable modules enable tailored solutions with selective feature inclusion

  3. Proven Stability – Optimized over 10 years, validated in 100+ projects, with a <0.1% failure rate

  4. Rapid Deployment – Standard solutions deployable in 7 days, with 60% faster turnaround for custom needs

  5. Continuous Evolution – Quarterly release cycles via a structured “version train” mechanism

The platform fully decouples core functions from business logic, enabling fast assembly of specialized solutions. It combines military-grade reliability with agile iteration efficiency, ensuring both robustness and adaptability.

More info
ItemsDescription
S5148G-4X2Q-EI1G Enterprise and Campus Network switch,with 48*1G Base-T,4*25G SFP28,2*40G QSFP+,Dual power supply modules, 2 hot-swap fan modules
S5148G-4X2Q-SI1G Enterprise and Campus Network switch,with 48*1G Base-T,4*25G SFP28,2*40G QSFP+,One fixed power supply,4 Fixed fans
S5148GP-4X2Q-EI1G Enterprise and Campus Network switch,with 48*1G Base-T(PoE+ 30W),4*25G SFP28,2*40G QSFP+,Dual power supply modules, 2 hot-swap fan modules
S5148GP-4X2Q-SI1G Enterprise and Campus Network switch,with 48*1G Base-T(PoE+ 30W),4*25G SFP28,2*40G QSFP+,One fixed power supply,4 Fixed fans
S5148GPB-4X2Q-EI1G Enterprise and Campus Network switch,with 48*1G Base-T(PoE++ 90W),4*25G SFP28,2*40G QSFP+,Dual power supply modules, 2 hot-swap fan modules
S5124G-4X2Q-EI1G Enterprise and Campus Network switch, with 24*1G Base-T,4*25G SFP28,2*40G QSFP+, Dual power supply modules, 2 hot-swap fan modules
S5124G-4X2Q-SI1G Enterprise and Campus Network switch,with 24*1G Base-T,4*25G SFP28,2*40G QSFP+,One fixed power supply,4 Fixed fans
S5124GP-4X2Q-EI1G Enterprise and Campus Network switch, with 24*1G Base-T(PoE+ 30W),4*25G SFP28,2*40G QSFP+, Dual power supply modules, 2 hot-swap fan modules
S5124GP-4X2Q-SI1G Enterprise and Campus Network switch,with 24*1G Base-T(PoE+ 30W),4*25G SFP28,2*40G QSFP+,One fixed power supply,4 Fixed fans
S5124GPB-4X2Q-EI1G Enterprise and Campus Network switch, with 24*1G Base-T (PoE++ 90W),4*25G SFP28,2*40G QSFP+, Dual power supply modules, 2 hot-swap fan modules
ItemsDescription
PSU-120-AC-AFOS51-Series 120W AC power supply (Front to Rear Airflow)
PSU-120-DC-AFOS51-Series 120W DC power supply (Front to Rear Airflow)
PSU-500-AC-AFOS51-Series 500W AC power supply (Front to Rear Airflow)
PSU-500-DC-AFOS51-Series 500W DC power supply (Front to Rear Airflow)
PSU-550-AC-AFOS51-Series 550W AC power supply (Front to Rear Airflow)
PSU-550-DC-AFOS51-Series 550W DC power supply (Front to Rear Airflow)
PSU-1200-AC-AFOS51-Series 1200W AC power supply (Front to Rear Airflow)
PSU-1200-DC-AFOS51-Series 1200W DC power supply (Front to Rear Airflow)
ItemsDescription
Software LicenseEB, Basic L3 software features, Preinstalled
Software LicenseMS, L3 enhance features software license key
Accessory
  • Mounting components pack
  • Power Cord
  • Serial Console cable
