Description
| Items | AC | DC | PoE Ports | AFO | AFI | Power Input | FAN |
|---|---|---|---|---|---|---|---|
| S5348V-4C-EI | ◯ | ◯ | X | ◯ | ◯ | 2 | 2 |
| S5348V-4C-SI | ◯ | X | X | ◯ | X | 1 | 4 |
| S5338V-1X4N-EI | ◯ | ◯ | X | ◯ | ◯ | 2 | 2 |
| S5338V-1X4N-SI | ◯ | X | X | ◯ | X | 1 | 4 |
| S5338VP-1X4N-EI | ◯ | X | 38 PoE++ | ◯ | X | 2 | 2 |
| S5334V-1X2C-SI | ◯ | X | X | ◯ | X | 1 | 4 |
| S5324V-2C-EI | ◯ | ◯ | X | ◯ | ◯ | 2 | 2 |
| S5324VP-2C-EI | ◯ | ◯ | 24 PoE++ | ◯ | X | 2 | 2 |
| S5324V-8N-EI | ◯ | ◯ | X | ◯ | ◯ | 2 | 2 |
| S5324VP-8N-EI | ◯ | X | 24 PoE++ | ◯ | X | 2 | 2 |
| Models | Ethernet Ports | Management | PSU 1/PSU 2 | Cooling |
|---|---|---|---|---|

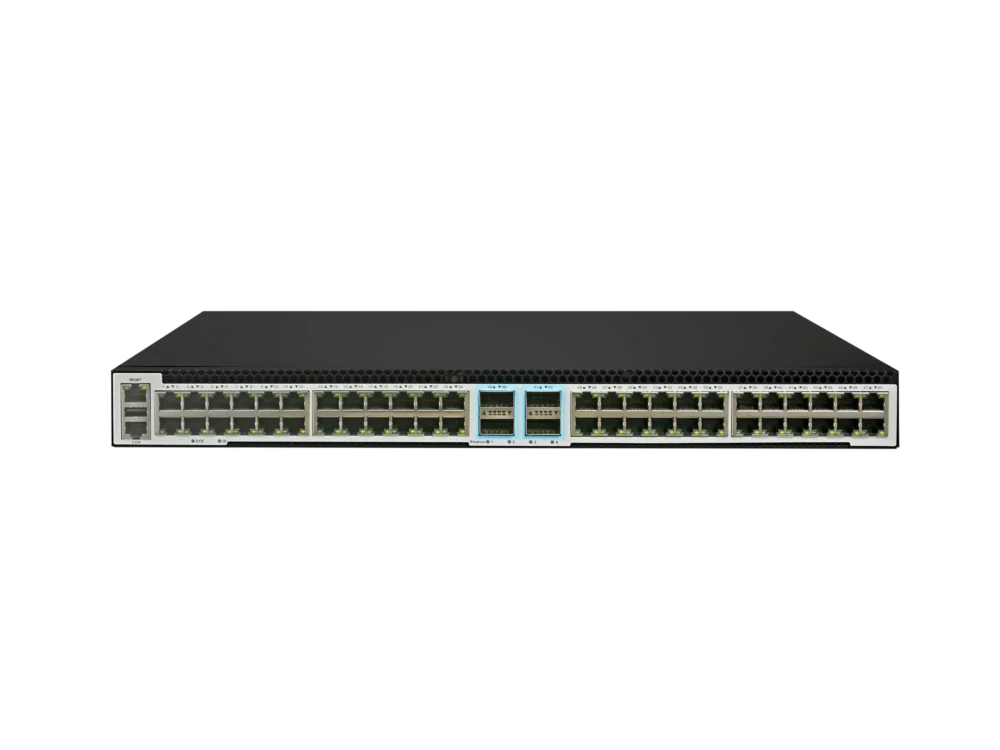

| S5348V-4C-EI | 48 x 100M/1G/2.5G/5G Base-T, 4x100G QSFP28 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | 350W/350W CRPS | 2 x Fan modules (front-to-back airflow) |
| S5348V-4C-SI | 48 x 100M/1G/2.5G/5G Base-T, 4x100G QSFP28 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | Fixed single power supply (200W) | 4 x Fixed fans (front-to-back aieflow) |

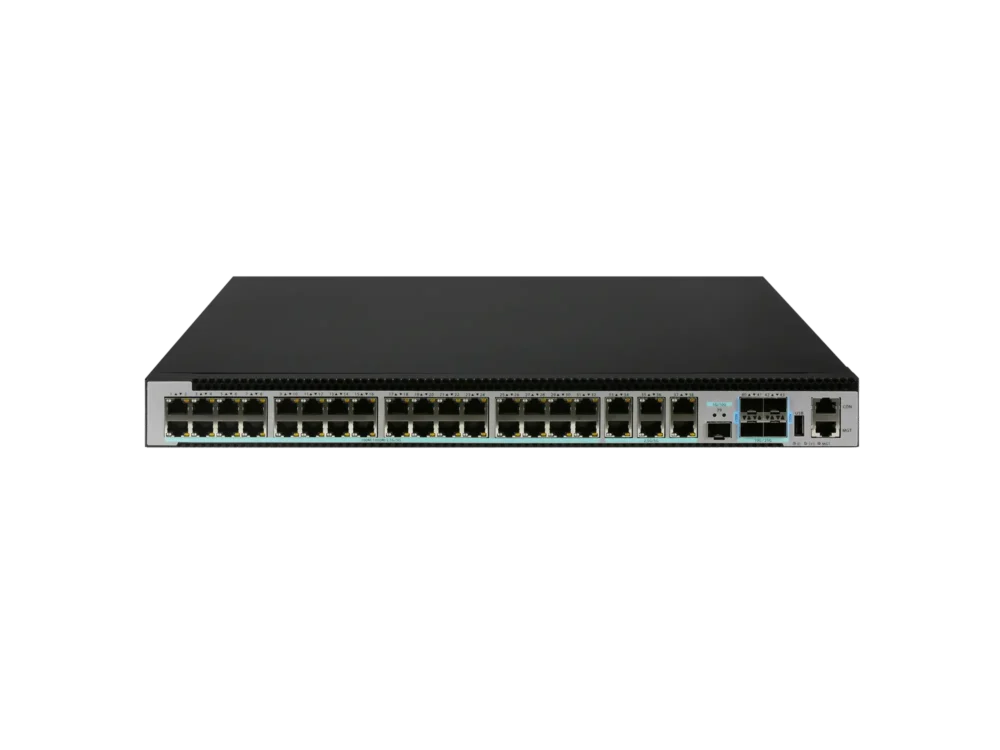

| S5338V-1X4N-EI | 38 x 100M/1G/2.5G/5G Base-T, 1 x 10G SFP+, 4 x 25G/10G SFP28 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | 350W/350W CRPS | 2 x Fan modules (front-to-back airflow) |
| S5338V-1X4N-SI | 38 x 100M/1G/2.5G/5G Base-T, 1 x 10G SFP+, 4 x 25G/10G SFP28 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | Fixed single power supply (200W) | 4 x Fixed fans (front-to-back airflow) |
| S5338VP-1X4N-EI | 38 x 100M/1G/2.5G/5G Base-T (PoE++ 90W), 1 x 10G SFP+, 4 x 25G/10G SFP28 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | 600W/600W CRPS | 2 x Fan modules (front-to-back airflow) |
| S5334V-1X2C-SI | 34 x 100M/1G/2.5G/5G Base-T, 1 x 10G SFP+,2 x 100G QSFP28 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | Fixed single power supply (200W) | 4 x Fan modules (front-to-back airflow) |

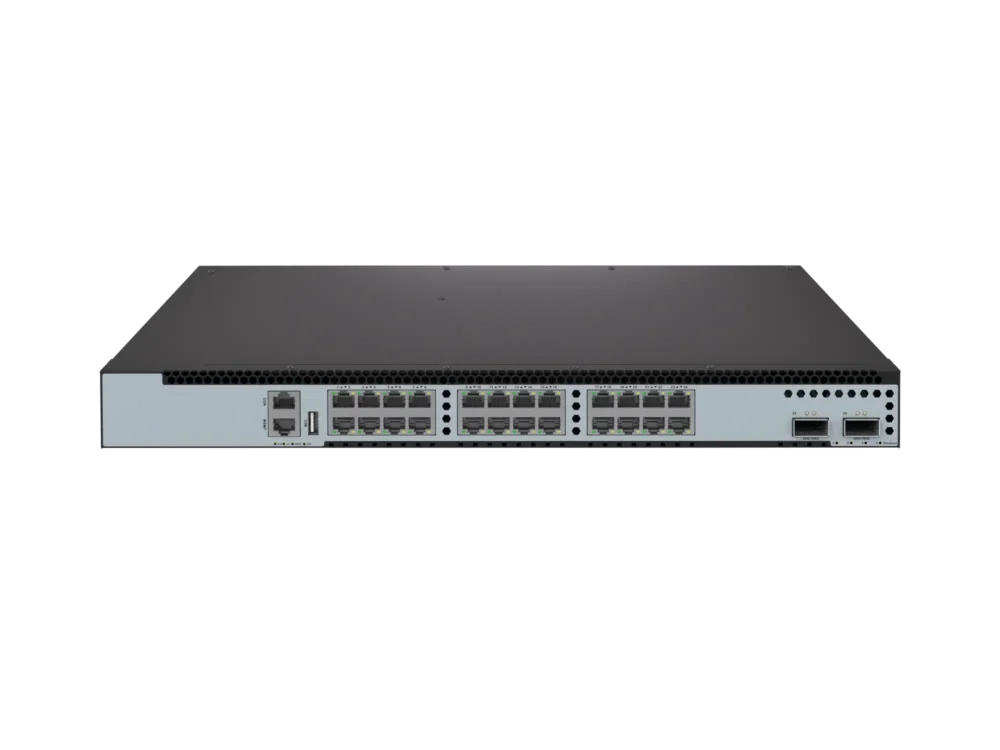

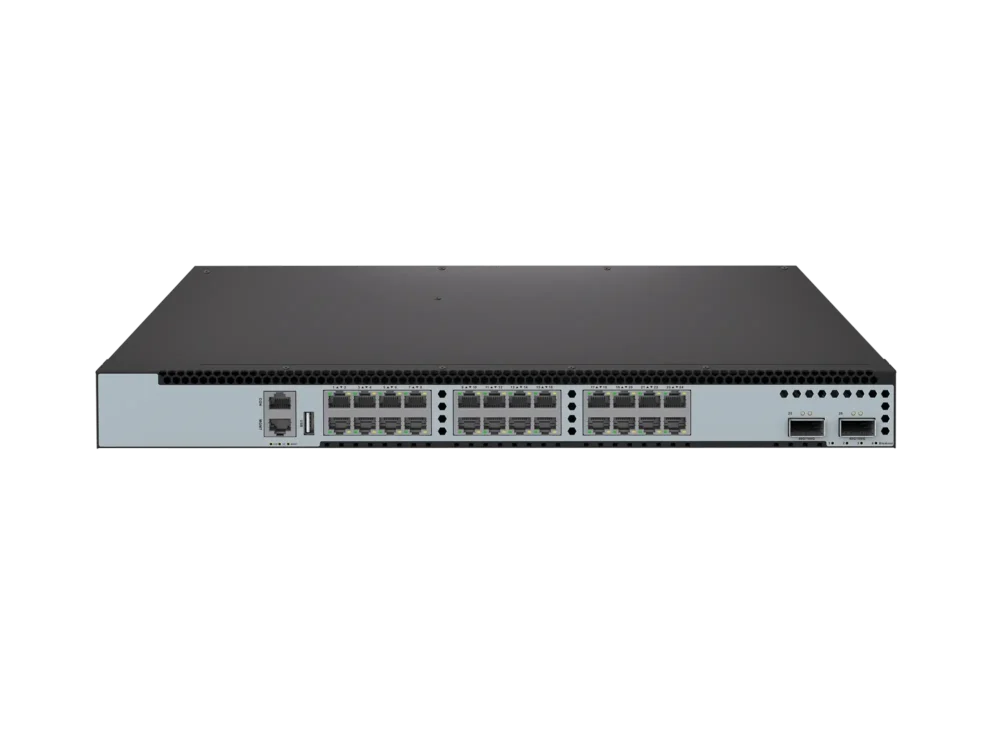

| S5324V-2C-EI | 24 x 100M/1G/2.5G/5G Base-T, 2 x 100G QSFP28 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | 350W/250W CRPS | 2 x Fan modules (front-to-back airflow) |
| S5324VP-2C-EI | 24 x 100M/1G/2.5G/5G Base-T (PoE++ 90W), 2 x 100G QSFP28 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | 600W/600W CRPS | 2 x Fan modules (front-to-back airflow) |

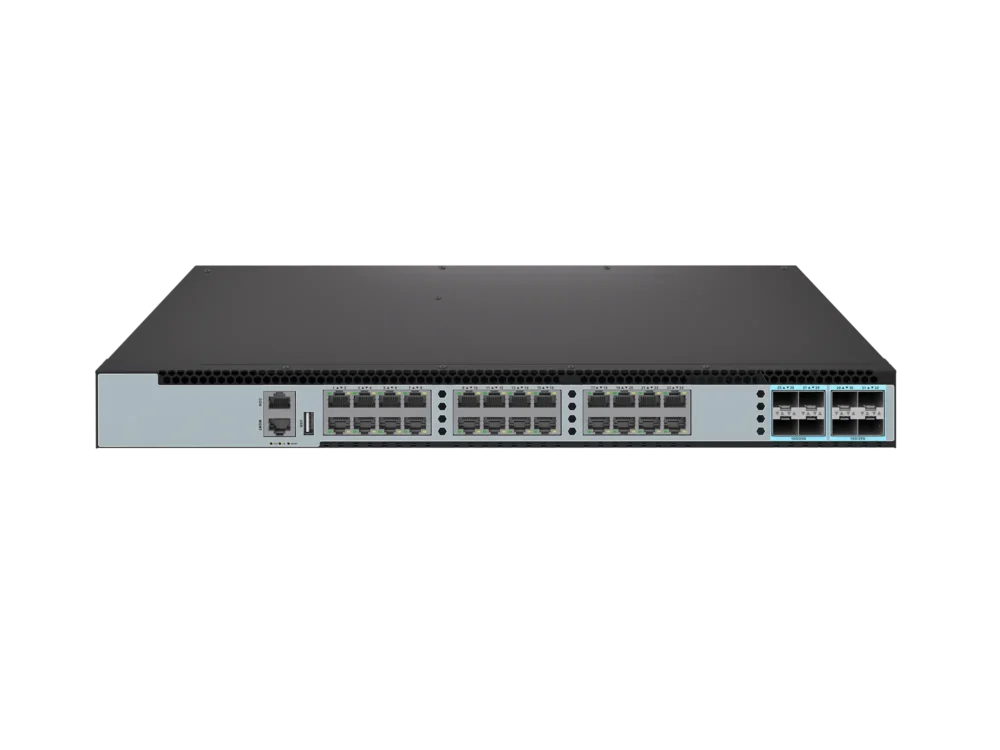

| S5324V-8N-EI | 24 x 100M/1G/2.5G/5G Base-T, 8 x 25G SFP28 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | 350W/250W CRPS | 2 x Fan modules (front-to-back airflow) |
| S5324VP-8N-EI | 24 x 100M/1G/2.5G/5G Base-T (PoE++ 90W), 8 x 25G SFP28 | Console: RJ45 to RS232 Ethernet: 1G Port Storage: USB | 600W/600W CRPS | 2 x Fan modules (front-to-back airflow) |
| Model | Switch capacity (bidirectional) | Throughput | Dimensions (W x H x D) | Consumption(W) | Weight(kg) (Net/Gross) |
|---|---|---|---|---|---|
| S5348V-4C-EI | 1280Gbps | 1904.64Mpps | 442*44*380 | 6.97KG/9.7KG | |
| S5348V-4C-SI | 1280Gbps | 1904.64Mpps | 442*44*371 | 5.21KG/7.9KG | |
| S5338V-1X4N-EI | 600Gbps | 892.8Mpps | 442*44*408 | 6.08KG/8.70KG | |
| S5338V-1X4N-SI | 600Gbps | 892.8Mpps | 442*44*330 | 4.6KG/7.2KG | |
| S5338VP-1X4N-EI | 600Gbps | 892.8Mpps | 442*44*408 | 6.42KG/9.00KG | |
| S5334V-1X2C-SI | 760Gbps | 1130.88Mpps | 442*44*330 | 4.6KG/7.2KG | |
| S5324V-2C-EI | 640Gbps | 952.32Mpps | 442*44*357 | 6.96KG/9.5KG | |
| S5324VP-2C-EI | 640Gbps | 952.32Mpps | 442*44*357 | 6.96KG/9.5KG | |
| S5324V-8N-EI | 640Gbps | 952.32Mpps | 442*44*357 | 6.96KG/9.5KG | |
| S5324VP-8N-EI | 640Gbps | 952.32Mpps | 442*44*357 | 6.96KG/9.5KG |
CPU
- > Dual-core processor, ARM A53
Memory
- > eMMc: 8GB on all models
- > DRAM: 2GB on all models
MTBF
- > -EI ≥90000H
- > -SI ≥70000H
Environmental ranges
- > Operating temperature: 0ºC to 45ºC
- > Storage temperature: -40ºC to 70ºC
- > Running Humidity: 10% to 90% (No condensation)
- > Store Humidity: 5 to 95% (No condensation)
Temperature alarm
- > Alarm threshold: 50ºC
The S5-Series switches support varied management ways, include console port / in-band network ports / out-of-band network port. Support SNMP v1/v2/v3, Support CLI (Command Line Interface), web management, Telnet and FTP connection. Support OAM to make management more convenient, and support SSH2.0, etc. to ensure security of management.
HOS allows you to quickly configure common configuration items using a visual WEB GUI, which lowers the application threshold for users.
Software Specifications
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo. Sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.
| Items | Description |
|---|---|
| S5348V-4C-EI | 5G enterprise switch,with 48 x 100M/1G/2.5G/5G Base-T, 4 x 100G QSFP28, Dual power supply modules, 2 Hot-swappable fan modules. |
| S5348V-4C-SI | 5G enterprise switch,with 48 x 100M/1G/2.5G/5G Base-T, 4 x 100G QSFP28, Fixed single power supply, 4 Fixed fans |
| S5338V-1X4N-EI | 5G enterprise switch, with 38 x 100M/1G/2.5G/5G Base-T, 1 x 10G SFP+, 4 x 25G/10G SFP28, Dual power supply modules, 2 hot-swappable fan modules. |
| S5338V-1X4N-SI | 5G enterprise switch, with 38 x 100M/1G/2.5G/5G Base-T, 1 x 10G SFP+, 4 x 25G/10G SFP28, Fixed single power supply, 4 Fixed fans |
| S5338VP-1X4N-EI | 5G enterprise switch, with 38 x 100M/1G/2.5G/5G Base-T (PoE++ 90W), 1 x 10G SFP+, 4 x 25G/10G SFP28, Dual power supply modules, 2 Hot-swappable fan modules. |
| S5334V-1X2C-SI | 5G enterprise switch, with 34 x 100M/1G/2.5G/5G Base-T, 1 x 10G SFP+, 2 x 100G QSFP28, Fixed single power supply, 4 Fixed fans |
| S5324V-2C-EI | 5G enterprise switch, with 24 x 100M/1G/2.5G/5G Base-T, 2 x 100G QSFP28, Dual power supply modules, 2 Hot-swappable fan modules. |
| S5324VP-2C-EI | 5G enterprise switch, with 24 x 100M/1G/2.5G/5G Base-T (PoE++ 90W), 2 x 100G QSFP28, Dual power supply modules, 2 Hot-swappable fan modules. |
| S5324V-8N-EI | 5G enterprise switch, with 24 x 100M/1G/2.5G/5G Base-T, 8 x 25G/10G SFP28, Dual power supply modules, 2 Hot-swappable fan modules.. |
| S5324VP-8N-EI | 5G enterprise switch, with 24 x 100M/1G/2.5G/5G Base-T (PoE++ 90W), 8 x 25G/10G SFP28, Dual power supply modules, 2 Hot-swappable fan modules. |
| Items | Description |
|---|---|
| PSU-350-AC-AFO | S53-Series Series 350 W AC power supply (front-to-back airflow) |
| PSU-550-DC-AFO | S53-Series Series 550 W DC power supply (front-to-back airflow) |
| PSU-600-AC-AFO | S53-Series Series 600 W AC power supply (front-to-back airflow) |
| PSU-900-AC-AFO | S53-Series Series 900 W AC power supply (front-to-back airflow) |
| PSU-1200-AC-AFO | S53-Series Series 1200 W AC power supply (front-to-back airflow) |
| PSU-2000-AC-AFO | S53-Series Series 2000 W AC power supply (front-to-back airflow) |
| Items | Description |
|---|---|
| Software License | EB, Basic L3 software features, Preinstalled |
| Software License | MS, L3 enhance features software license key |
Accessory
- Mounting components pack
- Power Cord
- Serial Console cable
