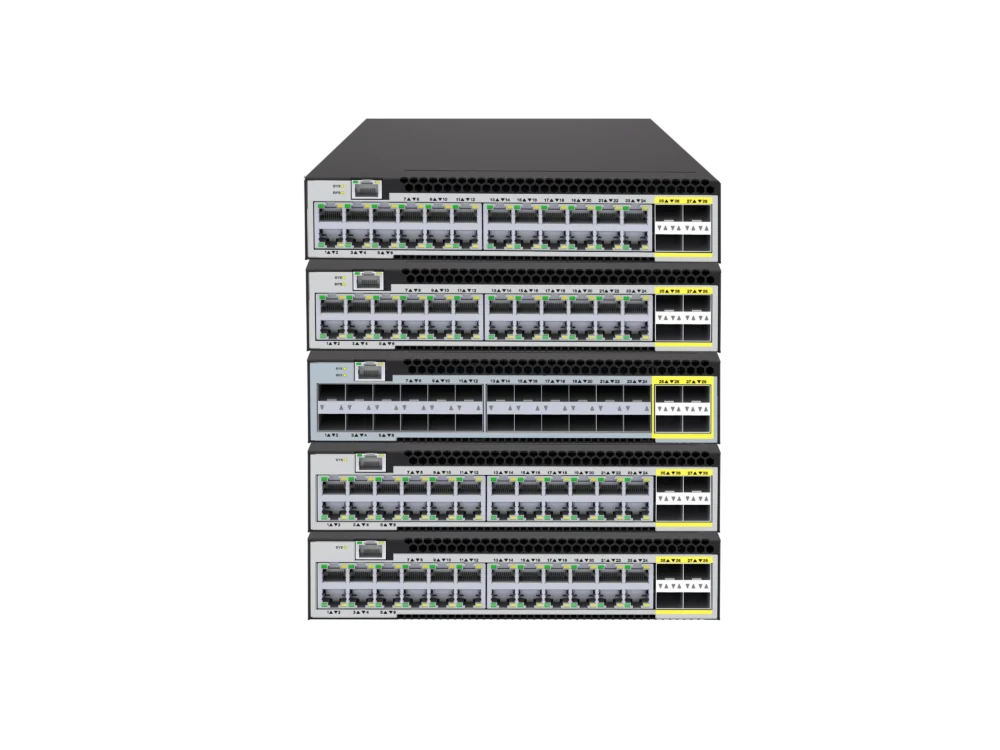

S2 EasyLink Series

Description

Items	AC	DC	AFO	AFI	POE	Power Input	FAN
S2224MH-4X-SI	◯	X	◯	X	X	1	3
S2224PMH-4X-SI	◯	X	◯	X	◯	1	3
S2124SH-4X-SI	◯	X	◯	X	X	1	3
S2124GH-4X-SI	◯	X	◯	X	X	1	3
S2124PGH-4X-SI	◯	X	◯	X	◯	1	3

HOS allows you to quickly configure common configuration items using a visual WEB GUI, which lowers the application threshold for users.

The DynamicDuo family of Ethernet switches consists of the following models:

Models	Ethernet Ports	Management	PSU 1/PSU 2	Cooling

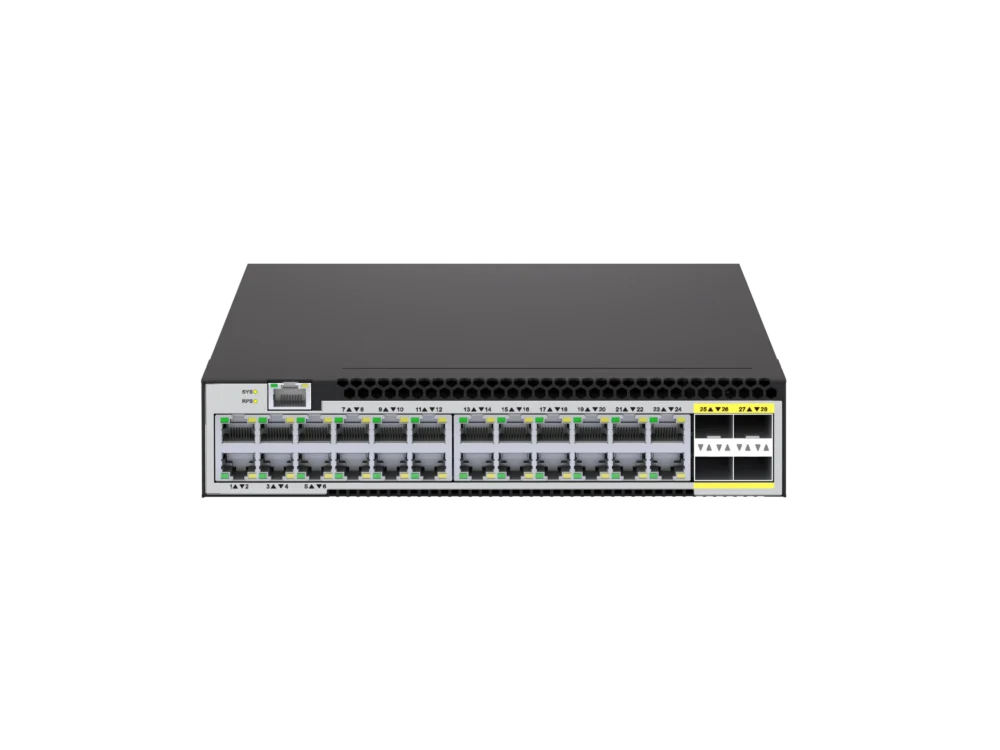

S2224MH-4X-SI	24 x 1G/2.5G Base-T+ 4 x 10G SFP+	Console: RJ45 RS232	150W Fixed single power supply	3 x fixed fans (front-to-back airflow)
S2224PMH-4X-SI	24 x 1G/2.5G PoE+ 30W Base-T+ 4 x 10G SFP+	Console: RJ45 RS232	480W Fixed single power supply	3 x fixed fans (front-to-back airflow)

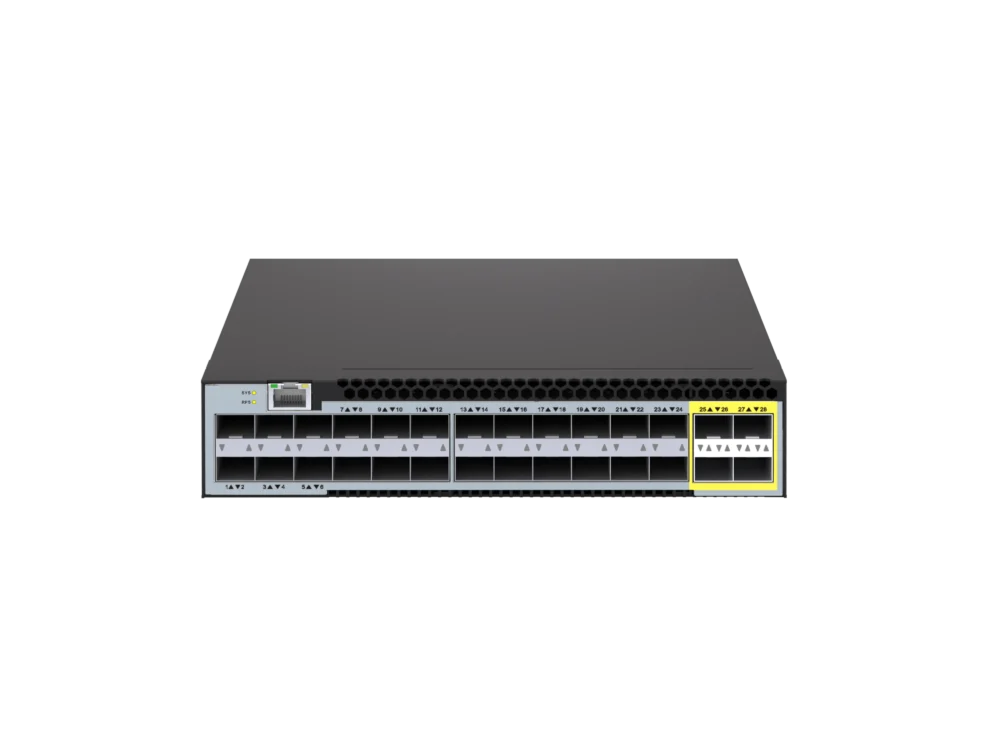

S2124SH-4X-SI	24 x 1G SFP + 4 x 10G SFP+	Console: RJ45 RS232	96W Fixed single power supply	3 x fixed fans (front-to-back airflow)
S2124GH-4X-SI	24 x 1G Base-T + 4 x 10G SFP+	Console: RJ45 RS232	96W Fixed single power supply	3 x fixed fans (front-to-back airflow)
S2124PGH-4X-SI	24 x 1G PoE+ 30W Base-T + 4 x 10G SFP+	Console: RJ45 RS232	460W Fixed single power supply	3 x fixed fans (front-to-back airflow)

Packet Switch capacity

Cooling [CFM]

Layer 2/Layer 3 Throughput (Mpps)

Acoustic in dBA

Power consumption

Worst case, all ports used, line-rate traffic

Typical Power consumption

Dimensions (W x H x D) without package

Weight (Net Weight/Gross Weight)

Dimensions (W x H x D) with package

MTBF

Environmental ranges

Memory-eMMC

Operating altitude

Memory-DRAM

CPU

Temperature alarm

Type			S2124GH-4X-SI	S2124SH-4X-SI	S2224MH-4X-SI	S2124PGH-4X-SI	S2224PMH-4X-SI
L3 Function	IPv4	IPv4 VLAN Interface	◯	◯	◯	◯	◯
		IPv4 Static Routes	◯	◯	◯	◯	◯
		ARP	◯	◯	◯	◯	◯
	IPv6	IPv6 VLAN Interface	◯	◯	◯	◯	◯
		IPv6 Static Routes	◯	◯	◯	◯	◯
		IPv6 ND	◯	◯	◯	◯	◯
	RIP	V1/V2	◯	◯	◯	◯	◯
	OSPF	Router-ID	◯	◯	◯	◯	◯
		Authentication	◯	◯	◯	◯	◯
		V2	◯	◯	◯	◯	◯
L2 Function	Port	Port Switch	◯	◯	◯	◯	◯
		Port Description	◯	◯	◯	◯	◯
		Port Speed	◯	◯	◯	◯	◯
		Port Duplex	◯	◯	◯	◯	◯
		Port Flow Control	◯	◯	◯	◯	◯
		Jumbo	◯	◯	◯	◯	◯
		EEE	◯	◯	◯	◯	◯
		Fiber Module(DDM)	◯	◯	◯	◯	◯
	Link Aggregation	Supports load balance policy; Base on MAC and IP-MAC	◯	◯	◯	◯	◯
	Link Aggregation	Static and Dynamic Group	◯	◯	◯	◯	◯
	Link Aggregation	Supports LACP	◯	◯	◯	◯	◯
	Link Aggregation	Up to 8 groups	◯	◯	◯	◯	◯
	Storm Control	Boardcast	◯	◯	◯	◯	◯
		Unknown Multicast	◯	◯	◯	◯	◯
		Unknown Unicast	◯	◯	◯	◯	◯
	Port Mirroring	One to one monitor	◯	◯	◯	◯	◯
		Many to one monitor	◯	◯	◯	◯	◯
		Ingress/Egress/Both	◯	◯	◯	◯	◯
		Up to 4 session groups	◯	◯	◯	◯	◯
	Port Security	MAC Address Constraints	◯	◯	◯	◯	◯
		Port Security MAC Address	◯	◯	◯	◯	◯
		Protect/Restrict/Shutdown	◯	◯	◯	◯	◯
		Port Isolation	◯	◯	◯	◯	◯
		Port Rate-limit	◯	◯	◯	◯	◯
		Loopback Detection	◯	◯	◯	◯	◯
	VLAN	Access/Trunk/Hybrid	◯	◯	◯	◯	◯
		VLAN Tunnel （Q-in-Q Tunnel）	◯	◯	◯	◯	◯
		Configurable VID from 1 - 4094;Max. 4K static VLAN groups	◯	◯	◯	◯	◯
	VLAN	Voice VLAN	◯	◯	◯	◯	◯
		MAC VLAN	◯	◯	◯	◯	◯
		Surveillance VLAN	◯	◯	◯	◯	◯
		Protocol VLAN	◯	◯	◯	◯	◯
		GVRP	◯	◯	◯	◯	◯
	MAC Address	Dynamic Address	◯	◯	◯	◯	◯
		Static Address	◯	◯	◯	◯	◯
		Filtering Address	◯	◯	◯	◯	◯
	Spanning Tree Protocol	STP/RSTP/MSTP	◯	◯	◯	◯	◯
		BPDU Filter	◯	◯	◯	◯	◯
		BPDU Guard	◯	◯	◯	◯	◯
		Edge Port	◯	◯	◯	◯	◯
	LLDP	LLDP	◯	◯	◯	◯	◯
	LLDP	LLDP MED	◯	◯	◯	◯	◯
	Multicast	IGMP Snnoping	◯	◯	◯	◯	◯
		IGMP V1/V2/V3	◯	◯	◯	◯	◯
		Router Port	◯	◯	◯	◯	◯
		Static IGMP group address	◯	◯	◯	◯	◯
		IGMP groups filtering	◯	◯	◯	◯	◯
		Querier	◯	◯	◯	◯	◯
		MLD Snooping	◯	◯	◯	◯	◯
	Multicast	MVR	◯	◯	◯	◯	◯
	QoS	Traffic classification based, Strict priority and WRR	◯	◯	◯	◯	◯
		Port Priority	◯	◯	◯	◯	◯
		802.1P Priority	◯	◯	◯	◯	◯
		IP TOS Priority	◯	◯	◯	◯	◯
		IP DSCP Priority	◯	◯	◯	◯	◯
		Supports up to 8 queues per port	◯	◯	◯	◯	◯
		Priority Remarking	◯	◯	◯	◯	◯
	ERPS	Only SFP port	◯	◯	◯	◯	◯
	ERPS	ALL Port	◯	◯	◯	◯	◯
PoE	PoE Config	PoE Temperature	X	X	X	◯	◯
		PoE Type/Level/Power/Voltage/Current	X	X	X	◯	◯
		PoE Switch	X	X	X	◯	◯
		PoE Watchdog	X	X	X	◯	◯
		PoE power AF/AT adaptation	X	X	X	◯	◯
		IEEE 802.3bt, compatible with IEEE 802.3af/802.3at PoE	X	X	X	◯	◯
		PoE Schedule	X	X	X	◯	◯
		PoE Port Timer Reboot	X	X	X	◯	◯
PoE	PoE Config	POE MAX	X	X	X	X	◯
Services	DHCP	DHCP Server	◯	◯	◯	◯	◯
		IP Pool	◯	◯	◯	◯	◯
		Static Binding	◯	◯	◯	◯	◯
		DHCP Relay	◯	◯	◯	◯	◯
		Option 43	◯	◯	◯	◯	◯
	Access Protocol	HTTP	◯	◯	◯	◯	◯
		HTTPS	◯	◯	◯	◯	◯
		Telnet	◯	◯	◯	◯	◯
		SSHv2	◯	◯	◯	◯	◯
		Manager ACL	◯	◯	◯	◯	◯
		Session Timeout	◯	◯	◯	◯	◯
		Password Retry Count	◯	◯	◯	◯	◯
		Silent Time	◯	◯	◯	◯	◯
Security	AAA	RADIUS	◯	◯	◯	◯	◯
		TACACS+	◯	◯	◯	◯	◯
		802.1X	◯	◯	◯	◯	◯
		Base on port/MAC/local/WEB	◯	◯	◯	◯	◯
	c	Global VLAN	◯	◯	◯	◯	◯
		Option 82	◯	◯	◯	◯	◯
		Circuit ID	◯	◯	◯	◯	◯
	IP Source Guard	Dynamic ARP Inspection	◯	◯	◯	◯	◯
	IP Source Guard	DoS Anti Attack	◯	◯	◯	◯	◯
	ACL	MAC ACL	◯	◯	◯	◯	◯
		IPv4 ACL	◯	◯	◯	◯	◯
		IPv6 ACL	◯	◯	◯	◯	◯
Diagnos-tics	System log	Logging Message	◯	◯	◯	◯	◯
	System log	Remote Server	◯	◯	◯	◯	◯
	Ping	Traceroute	◯	◯	◯	◯	◯
		Copper Test	◯	◯	◯	◯	◯
		UDLD	◯	◯	◯	◯	◯
Manage-ment	Manager Access	Console	◯	◯	◯	◯	◯
		HTTP/HTTPS	◯	◯	◯	◯	◯
		Telnet	◯	◯	◯	◯	◯
		SSH	◯	◯	◯	◯	◯
		SNMP	◯	◯	◯	◯	◯
	Manager IP	Static Address	◯	◯	◯	◯	◯
		DHCP Client	◯	◯	◯	◯	◯
		Supports IPv4 and IPv6 address	◯	◯	◯	◯	◯
		Manage VLAN / Manager VLAN	◯	◯	◯	◯	◯
		Manager IP	◯	◯	◯	◯	◯
	Time Synchroniza-tion	SNTP	◯	◯	◯	◯	◯
	Time Synchroniza-tion	Manual Time	◯	◯	◯	◯	◯
	SNMP	V1/V2C/V3	◯	◯	◯	◯	◯
		Community	◯	◯	◯	◯	◯
		V3 User	◯	◯	◯	◯	◯
		Group	◯	◯	◯	◯	◯
		Trap/ Trap Host	◯	◯	◯	◯	◯
	SNMP MIB	RFC 1213 MIB-II	◯	◯	◯	◯	◯
		RFC 1493 Bridge MIB	◯	◯	◯	◯	◯
		RFC 1643 Ethernet MIB	◯	◯	◯	◯	◯
		RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)	◯	◯	◯	◯	◯
		RFC 2863 Interface MIB	◯	◯	◯	◯	◯
		LLDP	◯	◯	◯	◯	◯
		Private MIB	◯	◯	◯	◯	◯
	RMON	Statistics	◯	◯	◯	◯	◯
		History	◯	◯	◯	◯	◯
		Event	◯	◯	◯	◯	◯
		Alarm	◯	◯	◯	◯	◯
User	Firmware	Double Image; Swap between Active and Alternate firmware image.	X	X	◯	X	◯
	Firmware	Firmware Upgarde	◯	◯	◯	◯	◯
	Configuration	Upload and download	◯	◯	◯	◯	◯
	Configuration	Save	◯	◯	◯	◯	◯
	Configuration	Restart	◯	◯	◯	◯	◯
	Configuration	Factory Defaults	◯	◯	◯	◯	◯
	Standards Compliance	IEEE 802.3x flow control and back pressure	◯	◯	◯	◯	◯
		IEEE 802.3ad port trunk with LACP	◯	◯	◯	◯	◯
		IEEE 802.1D Spanning Tree Protocol	◯	◯	◯	◯	◯
		IEEE 802.1w Rapid Spanning Tree Protocol	◯	◯	◯	◯	◯
		IEEE 802.1s Multiple Spanning Tree Protocol	◯	◯	◯	◯	◯
		IEEE 802.1p Class of Service	◯	◯	◯	◯	◯
		IEEE 802.1Q VLAN tagging	◯	◯	◯	◯	◯
		IEEE 802.1x Port Authentication Network Control	◯	◯	◯	◯	◯
		IEEE 802.1ab LLDP	◯	◯	◯	◯	◯
		IEEE 802.1ab LLDP	◯	◯	◯	◯	◯
		IEEE 802.3af Power over Ethernet	X	X	X	◯	◯
		IEEE 802.3at Power over Ethernet Plus	X	X	X	◯	◯
		RFC 768 UDP	◯	◯	◯	◯	◯
		RFC 793 TFTP	◯	◯	◯	◯	◯
		RFC 791 IP	◯	◯	◯	◯	◯
		RFC 792 ICMP	◯	◯	◯	◯	◯
		RFC 2068 HTTP	◯	◯	◯	◯	◯
		RFC 1112 IGMP v1	◯	◯	◯	◯	◯
		RFC 2236 IGMP v2	◯	◯	◯	◯	◯
		RFC 3376 IGMP v3	◯	◯	◯	◯	◯
		RFC 2710 MLD v1	◯	◯	◯	◯	◯
		FRC 3810 MLD v2	◯	◯	◯	◯	◯
		RFC 2328 OSPF v2	◯	◯	◯	◯	◯

Items	Description
S2224MH-4X-SI	2.5G enterprise switch, with 241G/2.5G Base-T, 410GE SFP+ One fixed Single power supply(C13), 3 fixed Fans.
S2224PMH-4X-SI	2.5G enterprise switch, with 241G/2.5G PoE+ 30W Base-T 410GE SFP+ One fixed Single power supply(C13), 3 fixed Fans.
S2124SH-4X-SI	1G enterprise switch, with 241G SFP, 410GE SFP+ One fixed Single power supply(C13), 3 fixed Fans.
S2124GH-4X-SI	1G enterprise switch, with 241G Base-T, 410GE SFP+ One fixed Single power supply(C13), 3 fixed Fans.
S2124PGH-4X-SI	1G enterprise switch, with 241G PoE+ 30W Base-T, 410GE SFP+ One fixed Single power supply(C13), 3 fixed Fans.

Items	Front Mounting Bracket- Short	Front Mounting Bracket- Short	Wall-Mounting Bracket	Rear Mounting Braket-Female	Rear Mounting Braket-Male	Middle Mounts-Female	Middle Mounts-Male
S2224MH-4X-SI	1	1	2	1	1	1	1
S2224PMH-4X-SI	1	1	2	1	1	1	1
S2124SH-4X-SI	2	1	2	1	1	1	1
S2124GH-4X-SI	2	1	2	1	1	1	1
S2124PGH-4X-SI	2	1	2	1	1	1	1

Items	Grounding Cable	Power Cord	RPS Cord	Console cable	M4 Screws	Stack bracket Front	Stack bracket Back
S2224MH-4X-SI	1	1	1	1	14	2	2
S2224PMH-4X-SI	1	1	0	1	14	2	2
S2124SH-4X-SI	1	1	1	1	14	2	2
S2124GH-4X-SI	1	1	1	1	14	2	2
S2124PGH-4X-SI	1	1	0	1	14	2	2
